ADVANCE GL687D Drive Position Tire

Model:ADVANCE/GL687D

ADVANCE GL687D Drive Position Tire is a heavy‑duty drive‑axle tire. It provides high wear resistance, high load capacity and powerful traction for highway and mixed‑road heavy‑duty applications.

Send Inquiry

Product Description

Product Introduction

This GL687D truck tire features high wear‑resistance, heavy‑load capacity and strong driving performance for trucks on graded highways and mixed‑condition roads.

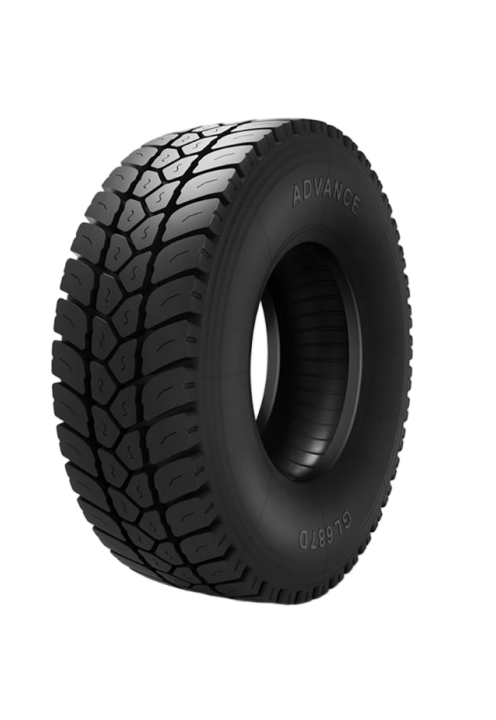

Picture:

Product Parameter

Size	Ply Rating	Load Index	Speed Rating	Measured Rim	Tread Width (mm)	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Load Capacity (kg)	Inflation Pressure (kPa)
225/70R19.5	14PR	128/126	L	6.75	182	226	817	15	S1800/ D1700	760
245/70R19.5	16PR	136/134	J	7.50	197	248	845	15	S2240 / D2120	830
295/80R22.5	16PR	150/147	M	9.00	225	298	1050	20	S3350 / D3075	830
295/80R22.5	18PR	152/149	M	9.00	225	298	1050	20	S3550 / D3250	900
295/80R22.5	18PR	152/148	M	9.00	225	298	1050	20	S3550 / D3150	850
315/80R22.5	18PR	154/151	L	9.00	260	312	1082	21	S3750 / D3450	830
315/80R22.5	20PR	157/154	K	9.00	260	312	1082	21	S4125 / D3750	900
315/80R22.5	20PR	156/150	L	9.00	260	312	1082	21	S4000 / D3350	850

Size	Ply Rating	Load Index	Speed Rating	Measured Rim	Tread Width (mm)	Section Width (mm)	Overall Diameter (mm)	Tread Depth (mm)	Load Capacity (kg)	Inflation Pressure (kPa)
12R22.5	16PR	150/147	M	9.00	230	300	1096	19	S3350 / D3075	830
12R22.5	18PR	152/149	L	9.00	230	300	1096	19	S3550 / D3250	930
13R22.5	18PR	154/151	K	9.75	240	320	1136	19	S3750 / D3450	830
13R22.5	18PR	154/150	K	9.75	240	320	1136	19	S3750 / D3350	850
13R22.5	20PR	156/150	J	9.75	240	320	1136	19	S4000 / D3350	875

Product Feature And Application

GL687D

Product Feature

High wear-resistant tread compound delivers long service mileage.
Reinforced construction provides stable high load bearing capacity.
Optimized block tread pattern generates powerful driving traction.

Application

Suitable for graded highways and mixed road surfaces.
Recommended for drive axle of heavy-duty trucks and semi-trailers.
Overloading is strictly prohibited.

Production Details

Core Advantages of ADVANCE GL687D Drive Position Tire

1. Powerful Directional Traction

2. Enhanced Tread Wear Resistance

3. Superior Cut & Chip Resistance

4. Effective Irregular Wear Prevention

5. Excellent Self-cleaning Performance

6. Reliable On/off-road Stability
