Product Introduction

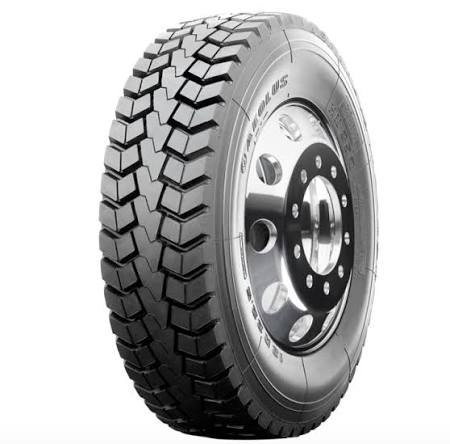

Aeolus ADC53 Commercial Truck Tire is a heavy-duty drive axle truck tire designed for mixed and poor rough road conditions with reinforced bead and high-strength carcass for heavy load transport.
Product Parameter (Specification)
| Size | Ply Rating | Single Max. Load(kg) | DualMax. Load(kg) | Single (kPa) | Dual (kPa) | LI/SS | Second. LI/SS | Tread depth mm | M+S |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 3000 | 2725 | 830 | 830 | 146/143L | 148/145K | 22.5 | √ |
| 11R24.5 | 16 | 3250 | 3000 | 830 | 830 | 149/146L | --- | 22.5 | √ |
| 12R22.5 | 18 | 3550 | 3250 | 930 | 930 | 152/149L | --- | 19.5 | √ |
| 13R22.5 | 18 | 3750 | 3450 | 830 | 830 | 154/151K | 156/150G | 20.6 | √ |
| 275/70R22.5 | 18 | 3150 | 2900 | 900 | 900 | 148/145L | --- | 17.5 | √ |
| 295/80R22.5 | 18 | 3550 | 3250 | 900 | 900 | 152/149L | --- | 19 | √ |
| 315/80R22.5 | 18 | 3750 | 3450 | 830 | 830 | 154/151M | 156/150L | 19.5 | √ |
| 315/80R22.5 | 20 | 4125 | 3750 | 900 | 900 | 157/154M | --- | 19.5 | √ |
| 11.00R20 | 18 | 3550 | 3250 | 930 | 930 | 152/149K | --- | 18.5 | √ |
| 12.00R20 | 18 | 3750 | 3450 | 830 | 830 | 154/151K | --- | 20.6 | √ |
| 12.00R20 | 20 | 4000 | 3650 | 900 | 900 | 156/153K | --- | 20.6 | √ |
| 12.00R20 | 22 | 4250 | 3875 | 970 | 970 | 158/155J | --- | 20.6 | √ |
| 12.00R24 | 20 | 4500 | 4125 | 900 | 900 | 160/157K | --- | 20.6 | √ |
Feature:
1.High load capacity with double nylon reinforced bead, resisting overload and under-inflation
2.30% stronger carcass with high-intensity HT cord for rough mixed roads
3.Optimized tread delivers even wear, excellent grip, traction and drainage
Application：

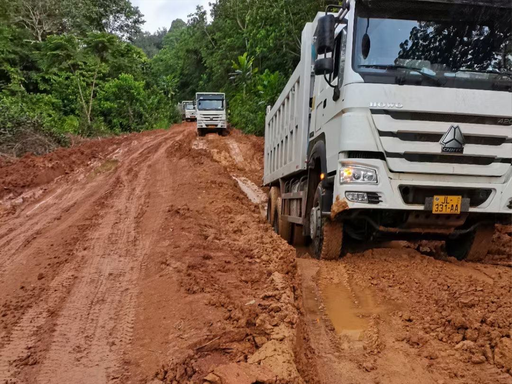

Aeolus ADC53 Heavy-Duty Drive Axle Commercial Truck Tire is specially fitted for the drive axles of trucks to operate on mixed and poor road surfaces.
Production Details
Core Advantages of Aeolus ADC53 Heavy-Duty Drive Axle Commercial Truck Tire
1.Double nylon reinforced bead and high-intensity HT cord greatly lift load capacity and carcass strength to resist overload and under-inflation on rough mixed roads.
2.Optimized tread pattern ensures uniform wear while offering outstanding grip, traction and drainage performance.
3.Certified M+S drive wheel tyre perfectly fits heavy-duty trucks for all kinds of poor and complex road surfaces.
