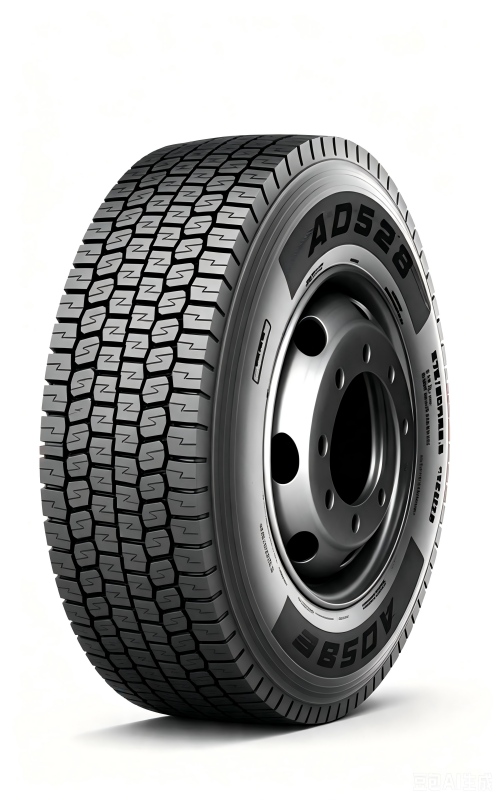

AD528 is a drive axle tire engineered for heavy-duty trucks for long-haul transportation on paved highways.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 275/80R22.5 | H/16 | 149/146M | 18 | 8.25 | 1012 | 276 | 3250 | 7165 | 850 | 123 | 3000 | 6610 | 850 | 123 |
| 295/80R22.5 | J/18 | 152/149M | 18 | 9 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
Product Features
New drive tire engineered for long-haul transport, delivering outstanding overall performance and long service life
Reinforced shoulder structure greatly improves wear resistance and service durability
Optimized anti-stone trap tread grooves prevent stone clamping, effectively extending tire service life
Chaoyang AD528 Drive Axle Tire is mount Position: Drive axle, applicable Vehicles: Dry van semi-trailers, tanker trucks, usage Scenario: Intercity highway long-distance freight, recommended tire for long-haul logistics fleets, delivering shoulder reinforcement design, Enhance durability of use, special designed tread grooves reduce stone retention for extended tyre life, designed to provide exceptional Performance and Life in Line haul Drive applications.
Mount Position: Drive axle
Applicable Vehicles: Dry van semi-trailers, tanker trucks
Usage Scenario: Intercity highway long-distance freight
Recommended tire for long-haul logistics fleets
Core Advantages of Chaoyang AD528 Drive Position
1.Shoulder reinforcement design, Enhance durability of use
2.Special designed tread grooves reduce stone retention for extended tyre life
3.Designed to provide exceptional Performance and Life in Line haul Drive applications
