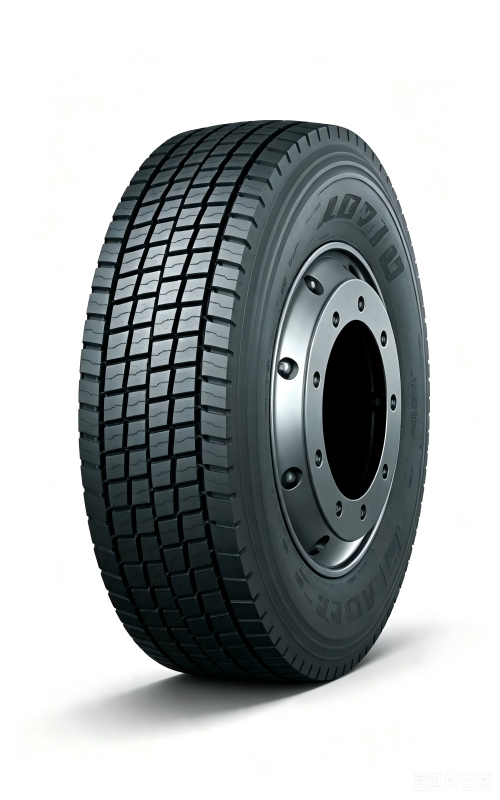

AD710A are drive axle tires suitable for heavy trucks and tank trailers on long-haul paved highways.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 11.00R20(AD710) | J/18 | 152/149K | 19 | 8 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 265/70R19.5(AD710A) | H/16 | 140/138M | 16 | 7.5 | 867 | 262 | 2500 | 5510 | 775 | 112 | 2360 | 5200 | 775 | 112 |
| 265/70R19.5(AD710A) | J/18 | 143/141J | 16 | 7.5 | 867 | 262 | 2725 | 6005 | 850 | 123 | 2575 | 5675 | 850 | 123 |
| 11R22.5(AD710A) | G/14 | 144/142L | 19.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5(AD710A) | H/16 | 148/145L | 19.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5(AD710A) | J/18 | 152/149L | 20 | 9 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 295/80R22.5(AD710A) | H/16 | 150/147M | 20.6 | 9 | 1050 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5(AD710A) | J/18 | 152/149M | 20.6 | 9 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5(AD710A) | L/20 | 157/154K | 20.6 | 9 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
Product Features
Optimized reinforced central blocks for stronger grip on wet and dry pavements
Upgraded anti-stone trap groove design reduces tread damage
Improved long-mileage rubber compound lowers overall operation cost
Stable stock support from China and Thailand factories
Chaoyang AD710A Drive Axle Tire is fitment: Drive axle, suitable vehicles: Long-haul freight semi-trailers, tank trucks, scenarios: Continuous intercity highway transportation, delivering strong center tread blocks provide excellent all-weather traction, special designed tread grooves reduce stone retention for extended tyre life, advanced tread compound provides remarkable performance for long haul service.
Fitment: Drive axle
Suitable vehicles: Long-haul freight semi-trailers, tank trucks
Scenarios: Continuous intercity highway transportation
Core Advantages of Chaoyang AD710 Drive Position
1.Strong center tread blocks provide excellent all-weather traction
2.Special designed tread grooves reduce stone retention for extended tyre life
3.Advanced tread compound provides remarkable performance for long haul service
