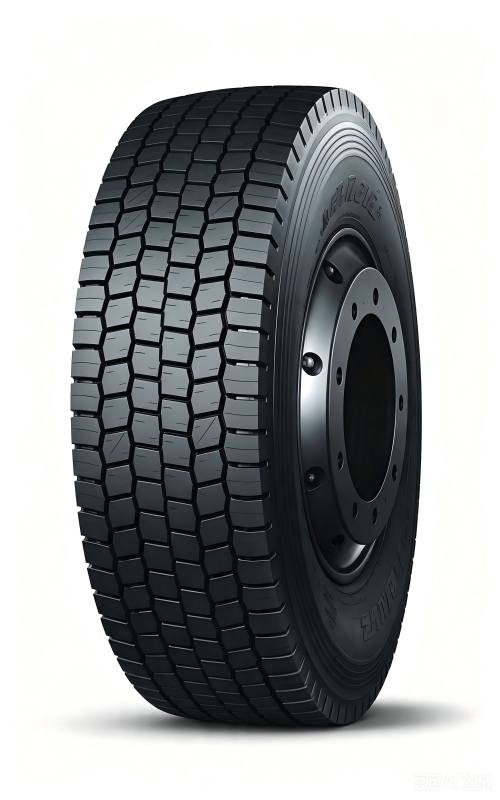

AD733 is a drive axle tire designed for heavy trucks and tank trailers operating on paved highway roads.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 12R22.5 | J/18 | 152/149L | 23 | 9 | 1096 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 305/70R22.5 | L/20 | 151/148M(153/150L) | 22 | 9 | 1018 | 317 | 3450 | 7610 | 900 | 130 | 3150 | 6940 | 900 | 130 |
| 295/80R22.5 | H/16 | 150/147M | 20.6 | 9 | 1050 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149M | 20.6 | 9 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
Product Features
Ultra-deep robust block tread delivers strong wet traction and extended service life
Specially designed for drive axles, offering stable lateral support and multiple retread capability
Advanced carcass tech creates uniform footprint and improves overall damage resistance
Chaoyang AD733 Drive Axle Tire is recommended axle: Drive axle, fits dry van semi-trailers and tank trucks, designed for long-distance full-paved highway freight transport, delivering ultra deep tread with robust tread blocks features excellent wet traction and longer tyre life, drive axle applicable providing lateral stability and multiple retreads, latest carcass technology guarantees superior footprint and enhances damage resistance.
Recommended axle: Drive axle
Fits dry van semi-trailers and tank trucks
Designed for long-distance full-paved highway freight transport
Core Advantages of Chaoyang AD733 Drive Position
1.Ultra deep tread with robust tread blocks features excellent wet traction and longer tyre life
2.Drive axle applicable providing lateral stability and multiple retreads
3.Latest carcass technology guarantees superior footprint and enhances damage resistance
