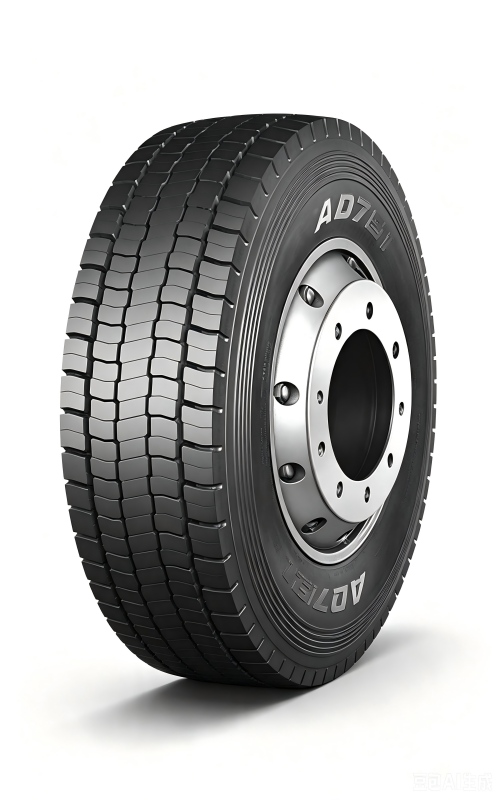

AD751 are drive axle tires designed for heavy trucks and tank trailers operating on paved highway roads.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 11R22.5(AD713) | G/14 | 144/142 L | 22.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5(AD713) | H/16 | 148/145L | 22.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5(AD713/AD751) | J/18 | 152/149L | 23 | 9 | 1096 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 275/70R22.5(AD713) | H/16 | 148/145L | 18.5 | 8.25 | 958 | 276 | 3150 | 6940 | 900 | 130 | 2950 | 6395 | 900 | 130 |
| 295/80R22.5(AD713) | H/16 | 150/147M | 20 | 9 | 1050 | 298 | 3350 | 7390 | 930 | 130 | 3075 | 6780 | 930 | 130 |
| 295/80R22.5(AD713) | J/18 | 152/149M | 20 | 9 | 1050 | 298 | 3550 | 7830 | 900 | 130 | 3250 | 7160 | 900 | 130 |
| 315/80R22.5(AD713/AD751) | J/18 | 154/151M(156/150L) | 22.5 | 9 | 1082 | 312 | 3750 | 8270 | 930 | 130 | 3750 | 8270 | 930 | 130 |
| 315/80R22.5(AD713) | L/20 | 157/154K | 22.5 | 9 | 1076 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
Product Features
Ultra-deep solid block pattern provides excellent wet grip and long tread service life
Optimized for drive positions, great lateral stability and multiple retread availability
Upgraded carcass structure balances even ground contact and anti-damage performance
Dual production bases in China and Thailand for flexible supply
Chaoyang AD751 Drive Axle Tire is recommended axle: Drive axle, fits long-haul dry freight and tank transport trucks, designed for all paved highway long-distance logistics, delivering ultra deep tread with robust tread blocks features excellent wet traction and longer tyre life, drive axle applicable providing lateral stability and multiple retreads, latest carcass technology guarantees superior footprint and enhances damage resistance.
Recommended axle: Drive axle
Fits long-haul dry freight and tank transport trucks
Designed for all paved highway long-distance logistics
Core Advantages of Chaoyang AD751 Drive Position
1.Ultra deep tread with robust tread blocks features excellent wet traction and longer tyre life
2.Drive axle applicable providing lateral stability and multiple retreads
3.Latest carcass technology guarantees superior footprint and enhances damage resistance
