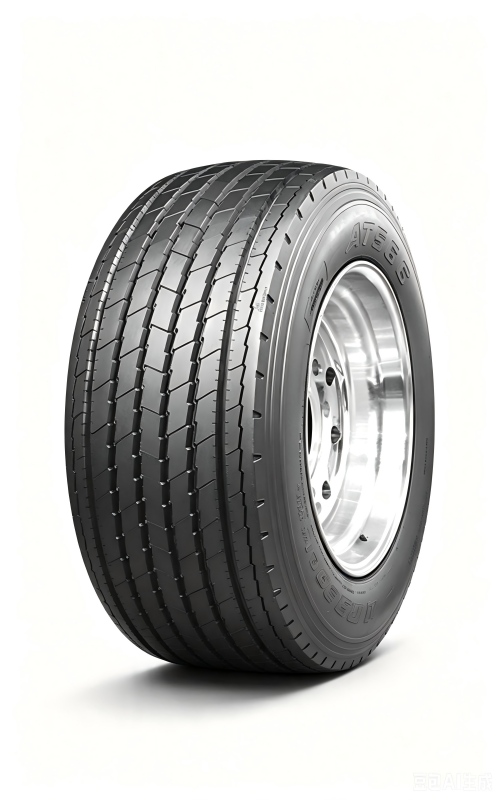

AT566 is a wide-base super single tire suitable for steer and trailer axles of heavy trucks running on paved highways.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 445/50R22.5 | L/20 | 161L | 13.1 | 14 | 1018 | 445 | 4625 | 10200 | 830 | 120 | – | – | – | – |
Product Features
Wide-base super single tire, compatible with steering axle and trailer axle
Computer optimized tread design ensures uniform wear and lower ground pressure
Low heat generation long-life tread compound extends original tread service life
Reinforced steel belt boosts casing durability and supports multiple retreading cycles
Chaoyang AT566 Wide-Base Super Single Tire is mount Position: Steering axle / Trailer axle, applicable Vehicles: Dry van semi-trailers, tank trucks, scenario: Highway long-distance freight, factory supply: Made in China & Thailand, delivering wide base trailer tyre specially designed for trailer service, special compound and strong tyre casing promise excellent tread wear and longer mileage, straight grooves help to reduce rolling resistance and improve fuel efficiency.
Mount Position: Steering axle / Trailer axle
Applicable Vehicles: Dry van semi-trailers, tank trucks
Scenario: Highway long-distance freight
Factory supply: Made in China & Thailand
Core Advantages of Chaoyang AT566 Trailer Position
1.Wide base trailer tyre specially designed for trailer service
2.Special compound and strong tyre casing promise excellent tread wear and longer mileage
3.Straight grooves help to reduce rolling resistance and improve fuel efficiency
