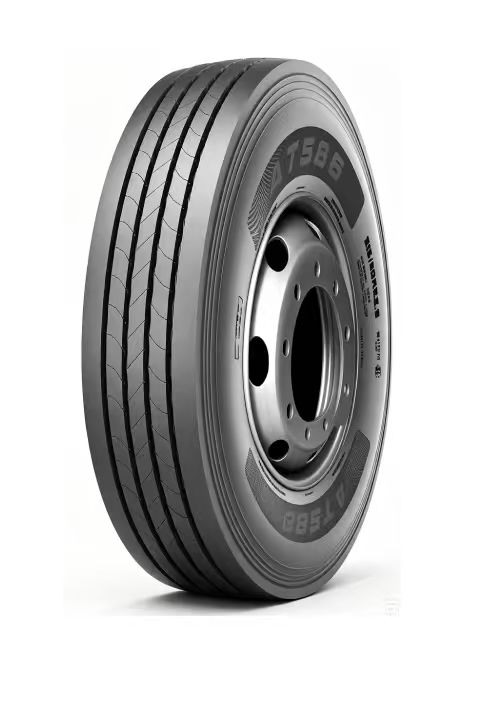

AT586 is a highway tire suitable for heavy trucks, tank trailers and coaches operating on paved road surfaces.
| Size | LR/PR | Service index | Tread Depth(mm) | Standard Rim | Overall Diameter(mm) | Section Width(mm) | Single‑kg | Single‑lbs | Single‑kPa(psi) | Dual‑kg | Dual‑lbs |
| 11.00R20 | J/18 | 152/149K | 16 | 8 | 1085 | 293 | 3550 | 7825 | 930(135) | 3250 | 7165 |
| 11.00R22 | H/16 | 152/149K | 14.2 | 8 | 1122 | 288 | 3550 | 7825 | 830(120) | 3250 | 7165 |
| 9.5R17.5 | G/14 | 129/127L | 13 | 6.75 | 842 | 240 | 1850 | 4080 | 750(109) | 1750 | 3860 |
| 9.5R17.5 | H/16 | 143/141J | 13 | 6.75 | 842 | 240 | 2725 | 6005 | 875(128) | 2575 | 5675 |
| 225/80R17.5 | H/16 | 123/122L | 14 | 6.75 | 805 | 226 | 1550 | 3415 | 700(102) | 1500 | 3305 |
Product Features
High saturation tread pattern boosts wear resistance for greatly extended service mileage
Zigzag main grooves with special bottom textures enhance stone ejection to prevent tire failures
Circumferential shallow drainage grooves upgrade highway handling stability
New all-position tire, manufactured in China & Thailand
Chaoyang AT586 Highway Tire is recommended axles: Steer, drive & trailer axles, suitable for semi-trailers, tank trucks and highway passenger coaches, optimized for full-long-haul paved highway transportation, delivering all-position versatility, high mileage & wear resistance, excellent steering stability, strong load capacity, uniform wear performance, durable casing construction.
Recommended axles: Steer, drive & trailer axles
Suitable for semi-trailers, tank trucks and highway passenger coaches
Optimized for full-long-haul paved highway transportation
Core Advantages of Chaoyang AT586 Trailer and Steer Position
1.All-Position Versatility
2.High Mileage & Wear Resistance
3.Excellent Steering Stability
4.Strong Load Capacity
5.Uniform Wear Performance
6.Durable Casing Construction
