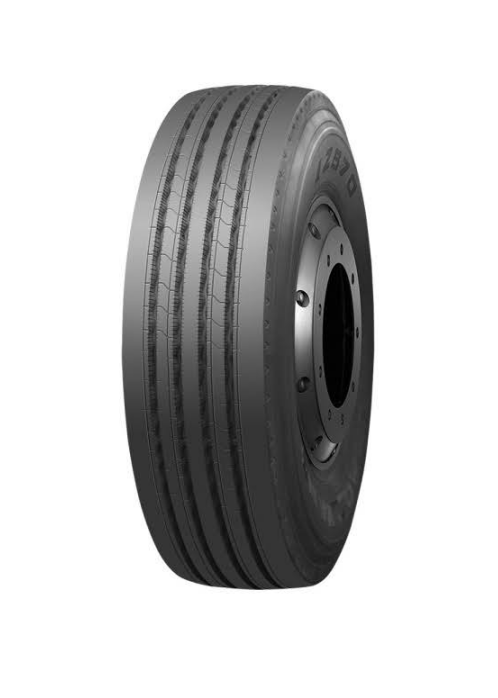

AZ670 is a premium five-rib highway tire suitable for heavy trucks, trailers and coaches operating on paved roads.
| Size | LR / PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg/lbs) | Single Pressure (kPa/psi) | Dual Load (kg/lbs) | Dual Pressure (kPa/psi) |
| 11R22.5 | G/14 | 144/142M | 16 | 8.25 | 1054 | 279 | 2800 / 6175 | 720 / 105 | 2650 / 5840 | 720 / 105 |
| 11R22.5 | H/16 | 148/145L | 16 | 8.25 | 1054 | 279 | 3150 / 6940 | 850 / 123 | 2900 / 6390 | 850 / 123 |
| 12R22.5 | J/18 | 152/149L | 16 | 9 | 1085 | 300 | 3550 / 7830 | 930 / 135 | 3250 / 7160 | 930 / 135 |
| 255/70R22.5 | H/16 | 140/137M | 15 | 7.5 | 930 | 255 | 2500 / 5510 | 830 / 120 | 2300 / 5070 | 830 / 120 |
| 295/80R22.5 | J/18 | 152/149L | 16 | 9 | 1044 | 298 | 3550 / 7830 | 900 / 131 | 3250 / 7160 | 900 / 131 |
Product Features
Multi-pitch 5-rib tread delivers quiet, comfortable highway ride
Built-in stone ejection design prevents stone trapping and casing punctures
Computer-optimized casing forms uniform footprint for extended service mileage
Chaoyang AZ670 Premium Five-Rib Highway Tire is recommended axle: Steer axle, available axles: Drive & trailer axles, compatible with semi-trailers, tank trucks and highway passenger buses, designed for long-distance full-highway transportation, delivering high mileage & wear resistance, excellent load capacity, uniform wear performance, low rolling resistance, durable casing construction, stable trailer operation performance.
Recommended axle: Steer axle
Available axles: Drive & trailer axles
Compatible with semi-trailers, tank trucks and highway passenger buses
Designed for long-distance full-highway transportation
Core Advantages of Chaoyang AZ670 Trailer Position
1.High Mileage & Wear Resistance
2.Excellent Load Capacity
3.Uniform Wear Performance
4.Low Rolling Resistance
5.Durable Casing Construction
6.Stable Trailer Operation Performance
