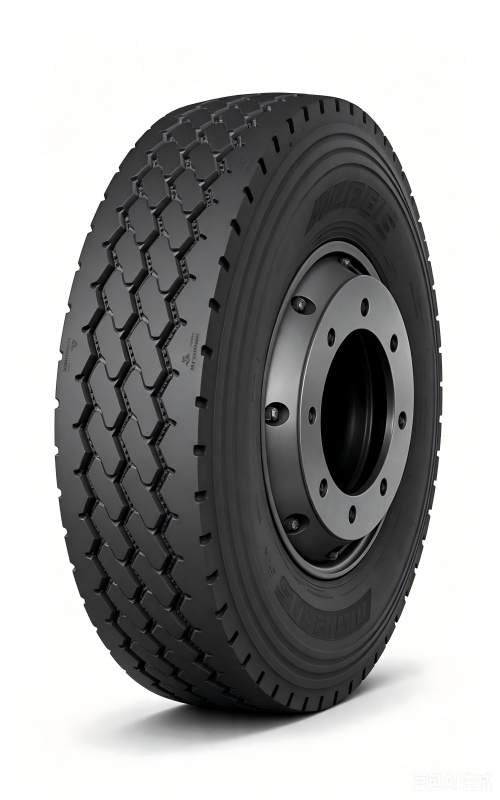

AZ676 is a heavy-duty truck tire suitable for various commercial trucks operating on both on-road and off-road mixed surfaces.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation (kPa) | Single Inflation (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation (kPa) | Dual Inflation (psi) |
| 6.50R16 | F/12 | 110/105L | 9.5 | 5.50F | 750 | 185 | 1060 | 2335 | 670 | 97 | 925 | 2040 | 670 | 97 |
| 7.00R16 | G/14 | 118/114L | 11 | 5.50F | 775 | 200 | 1320 | 2910 | 770 | 112 | 1180 | 2600 | 770 | 112 |
| 8.25R16 | H/16 | 128/124L | 14 | 6.50H | 855 | 235 | 1800 | 3970 | 770 | 112 | 1600 | 3525 | 770 | 112 |
| 8.25R20 | H/16 | 139/137K | 15 | 6.5 | 974 | 236 | 2430 | 5360 | 930 | 135 | 2300 | 5070 | 930 | 135 |
| 9.00R20 | H/16 | 144/142K | 15.5 | 7 | 1019 | 259 | 2800 | 6175 | 900 | 130 | 2650 | 5840 | 900 | 130 |
| 10.00R20 | H/16 | 146/143K | 16 | 7.5 | 1054 | 278 | 3000 | 6610 | 830 | 120 | 2725 | 6005 | 830 | 120 |
| 10.00R20 | J/18 | 149/146J | 16 | 7.5 | 1054 | 278 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 11.00R20 | J/18 | 152/149K | 16 | 8 | 1085 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
| 12.00R20 | J/18 | 154/151K | 17.5 | 8.5 | 1125 | 315 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
| 11R22.5 | G/14 | 144/142M | 16.8 | 8.25 | 1054 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145M | 16.8 | 8.25 | 1054 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 11R22.5 | J/18 | 149/146L | 16.8 | 8.25 | 1054 | 279 | 3250 | 7160 | 930 | 135 | 3000 | 6610 | 930 | 135 |
| 12R22.5 | J/18 | 152/149L | 16 | 9 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 295/80R22.5 | H/16 | 150/147M | 16 | 9 | 1044 | 298 | 3350 | 7390 | 830 | 120 | 3075 | 6780 | 830 | 120 |
| 295/80R22.5 | J/18 | 152/149L | 16 | 9 | 1044 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5 | J/18 | 154/151M(156/150L) | 16 | 9 | 1076 | 312 | 3750 | 8270 | 830 | 120 | 3450 | 7610 | 830 | 120 |
Product Features
3 circumferential grooves deliver stable steering, uniform tread wear and smooth driving ride
Dense heavy siping ensures reliable braking stability and strong lateral traction on dry & wet pavements
Optimized tread compound with excellent tear resistance, stable mileage performance for both highway and off-road regional transport
Reinforced sidewall ribs effectively defend the tire against curb scuffs and road impacts
Chaoyang AZ676 Heavy-Duty Truck Tire is recommended for box semi-trailers, tanker trucks, flatbed trucks and construction transport vehicles, suitable for mixed on/off road regional short & medium haul transportation, delivering 3 circumferential grooves ensures good directional stability, even wear and smooth ride, heavy siping provides good braking stability and high lateral traction on wet and dry surface, improved tread compound helps resist tears and ensure good mileage in on and off road use, sidewall reinforcing ribs protects against impacts and scuffing.
Recommended for box semi-trailers, tanker trucks, flatbed trucks and construction transport vehicles
Suitable for mixed on/off road regional short & medium haul transportation
Core Advantages of Chaoyang AZ676 Trailer and Steer Position
1.3 circumferential grooves ensures good directional stability, even wear and smooth ride
2.Heavy siping provides good braking stability and high lateral traction on wet and dry surface
3.Improved tread compound helps resist tears and ensure good mileage in on and off road use
4.Sidewall reinforcing ribs protects against impacts and scuffing
