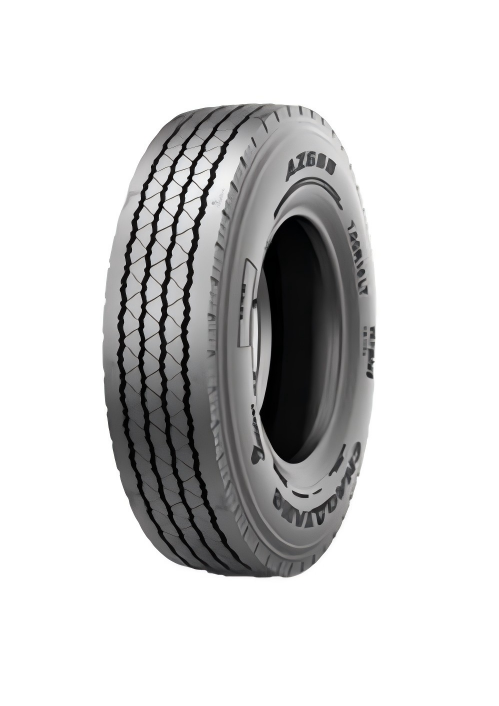

Chaoyang AZ686 Trailer and Steer Position

Model:Chaoyang/AZ686

Chaoyang AZ686 Trailer and Steer Position adopts wide tread width for stable driving feel. Extra‑deep tread offers huge pattern volume and long service life. Its zig‑zag rib brings outstanding regional‑route traction, while cross‑rib sipes expel water to ensure reliable braking performance on wet road surfaces.

Send Inquiry

Product Description

Chaoyang AZ686

AZ686 is an economy-oriented, wear-resistant tire designed for commercial vehicles operating on mixed paved and unpaved road conditions .


Product Parameter (Specification)

Size	LR / PR	Service Index	Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)	Single Load (kg)	Single Load (lbs)	Single Pressure (kPa)	Single Pressure (psi)	Dual Load (kg)	Dual Load (lbs)	Dual Pressure (kPa)	Dual Pressure (psi)
7.00R15	F/12	113/109L	12	750	200	1150	2535	670	97	1030	2270	670	97
6.50R16	F/12	110/105L	11	750	185	1060	2336	670	97	925	2038	670	97
7.00R16	G/14	118/114L	12	775	200	1320	2910	770	112	1180	2600	770	112
7.50R16	G/14	122/118L	13	805	215	1500	3305	770	112	1320	2910	770	112
8.25R16	J/18	134/129K	14	857	235	2120	4675	850	123	1800	4080	850	123
10.00R20	H/16	146/143K	15	1054	278	3000	6610	830	120	2725	6005	830	120
10.00R20	J/18	149/146J	15	278	1054	3250	7160	930	135	3000	6610	930	135

Features of Chaoyang AZ686

Key Features

Wide tread width delivers enhanced driving stability
Extra‑deep tread design with high pattern volume for extended service life
Zig‑zag rib provides excellent traction for regional transport conditions
Cross‑rib sipes cut through water, guaranteeing reliable wet‑road handling

Advantage

Chaoyang AZ686 Economy-Oriented Tire is recommended for multi‑purpose regional trucks, box trucks and flatbed vehicles, optimized for regional highway & mixed‑road transportation, delivering wide tread design for excellent stability, deep tread for longer mileage, zig-zag ribs for strong traction, sipes improve wet-road grip and braking, durable performance with lower cost per kilometer.

Application：

Red dot: Recommendable position
Recommended for multi‑purpose regional trucks, box trucks and flatbed vehicles
Optimized for regional highway & mixed‑road transportation

Production Details

Core Advantages of Chaoyang AZ686 Trailer and Steer Position

1.Wide tread design for excellent stability
2.Deep tread for longer mileage
3.Zig-zag ribs for strong traction
4.Sipes improve wet-road grip and braking
5.Durable performance with lower cost per kilometer
