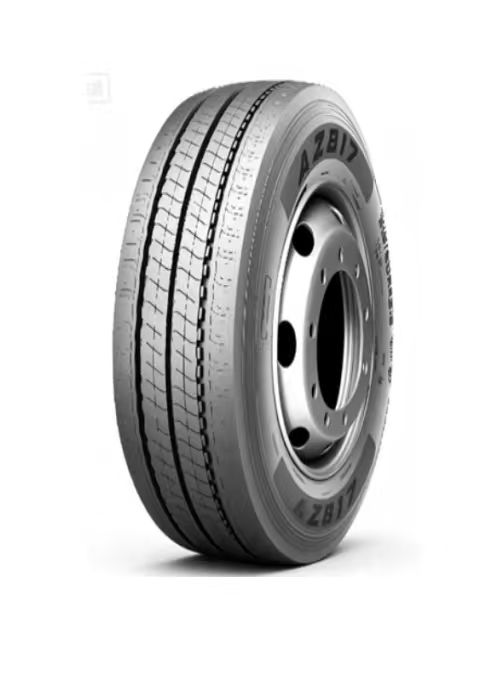

AZ817 / AZ817 PRO is a highway tire designed for heavy-duty trucks and trailers operating on paved road conditions.
| Size | LR / PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg/lbs) | Single Pressure (kPa/psi) | Dual Load (kg/lbs) | Dual Pressure (kPa/psi) |
| 315/80R22.5 | J/18 | 156/150L | 14.5 | 9.75 | 950 | 313 | 3750 / 8270 | 900 / 130 | 3350 / 7390 | 900 / 130 |
| 315/80R22.5 | L/20 | 156/150L | 14.5 | 9 | 1014 | 312 | 4000 / 8820 | 900 / 130 | 3350 / 7390 | 900 / 130 |
Product Features
Optimized 5-rib tread for uniform wear and precise driving control
Hidden longitudinal ditches matched with 3D steel sheets to strengthen block rigidity and boost traction
Twisted shoulder longitudinal grooves deliver superior driving stability
Special nail-adhesive groove bottom design effectively ejects stones to prevent tire damage
Chaoyang AZ817 / AZ817 PRO Highway Tire is recommended axle: Steer axle, available axle: Drive & trailer axles, suitable for semi-trailers, tank trucks and flatbed transport vehicles, designed for long-distance full-highway freight transportation, delivering strong traction performance, high mileage & wear resistance, excellent load capacity, durable casing construction, stone ejection design, stable driving performance.
Recommended axle: Steer axle
Available axle: Drive & trailer axles
Suitable for semi-trailers, tank trucks and flatbed transport vehicles
Designed for long-distance full-highway freight transportation
Core Advantages of Chaoyang AZ817 Drive Position
1.Strong Traction Performance
2.High Mileage & Wear Resistance
3.Excellent Load Capacity
4.Durable Casing Construction
5.Stone Ejection Design
6.Stable Driving Performance
