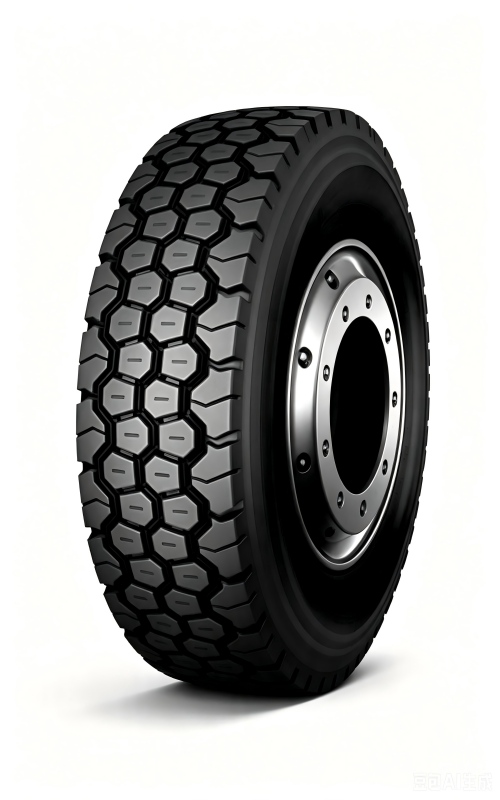

Chaoyang AZ850 Trailer and Steer Position

Model:Chaoyang/AZ850

Chaoyang AZ850 Trailer and Steer tyre is a flagship regional haul tyre built on PSCT design concept. GSCT technology effectively restrains groove cracking and extends tyre service life. It minimizes irregular wear and boosts durability, delivering stable, reliable performance for medium and short-distance transportation fleets.

Send Inquiry

Product Description

Chaoyang AZ850

AZ850 is a flagship regional truck tire suitable for heavy-duty trucks operating on various paved road surfaces.


Product Parameter (Specification)

Tire Size	LR/PR	Service Index	Tread Depth (mm)	Standard Rim	Overall Diameter (mm)	Section Width (mm)	Single Load (kg)	Single Load (lbs)	Single Inflation Pressure (kPa)	Single Inflation Pressure (psi)	Dual Load (kg)	Dual Load (lbs)	Dual Inflation Pressure (kPa)	Dual Inflation Pressure (psi)
7.00R16	G/14	118/114M	10	6.50H	855	235	1180	2600	770	112	–	–	–	–
7.50R16	G/14	122/118L	13	6.00G	805	215	1500	3305	770	112	1320	2910	770	112
8.25R16	H/16	128/124L	15	6.50H	855	235	1800	3970	770	112	1600	3525	770	112
8.25R20	H/16	139/137K	15	6.5	974	236	2430	5360	930	135	2300	5070	930	135
9.00R20	H/16	144/142K	15.5	7	1019	259	2800	6175	900	130	2650	5840	900	130
10.00R20	J/18	149/146J	15.5	7.5	1054	278	3250	7160	930	135	3000	6610	930	135
11.00R20	J/18	152/149K	16.5	8	1085	293	3550	7825	930	135	3250	7165	930	135
12.00R20	J/18	154/151K	17.5	8.5	1125	315	3750	8270	830	120	3450	7610	830	120
12.00R20	L/20	156/153J	17.5	8.5	1125	315	4000	8820	900	131	3650	8050	900	131
265/55R19.5	G/14	132/130J	12	8.25	867	262	2000	4400	760	110	1900	4190	760	110
11R22.5	H/16	148/145L	17	8.25	1054	279	3150	6940	850	123	2900	6390	850	123
12R22.5	J/18	152/149L	18	9	1085	300	3550	7830	930	135	3250	7160	930	135
13R22.5	J/18	156/151K	20	9.75	1124	320	4000	8820	875	128	3450	7610	875	128
295/80R22.5	J/18	152/149M	18	9	1050	298	3550	7830	900	131	3250	7160	900	131

Features of Chaoyang AZ850

Product Feature

Adopts PSCT & GSCT technology, effectively reduces uneven wear and groove cracking, extending overall tire service life
Wider & deeper tread design delivers long service life on various road surfaces
3 zigzag main grooves plus multi-angle sipes, greatly improve traction and braking performance
Built-in stone ejector blocks inside grooves, prevent stones from piercing steel belts
Available in both tubeless and tube type versions

Advantage

Chaoyang AZ850 Flagship Regional Truck Tire is for regional short-to-medium haul transport, fit vehicles: Box semi-trailer, tanker truck, flatbed truck, light/medium truck, transport trailer with construction machinery, marked as recommended model for regional fleets, delivering wider and deeper tread helps providelong tread life on various road surface, 3 zigzag grooves and multi-angular sipesImprove traction and braking performance, stone ejection design, durable casing construction.

Application：

Regional short-to-medium haul transport
Fit vehicles: Box semi-trailer, tanker truck, flatbed truck, light/medium truck, transport trailer with construction machinery
Marked as recommended model for regional fleets

Production Details

Core Advantages of Chaoyang AZ850 Trailer and Steer Position

1.Wider and deeper tread helps providelong tread life on various road surface
2.3 zigzag grooves and multi-angular sipesImprove traction and braking performance
3.Stone Ejection Design
4.Durable Casing Construction
