Chaoyang CB332 All Position on mixed service

Model:Chaoyang/CB332

Chaoyang CB332 All Position is a heavy‑duty tyre for low‑speed mining services. Robust tread blocks deliver reliable traction and flotation over rough ground. Premium tread compound withstands chipping and chunking, bringing stable performance under severe off‑road working circumstances.

Send Inquiry

Product Description

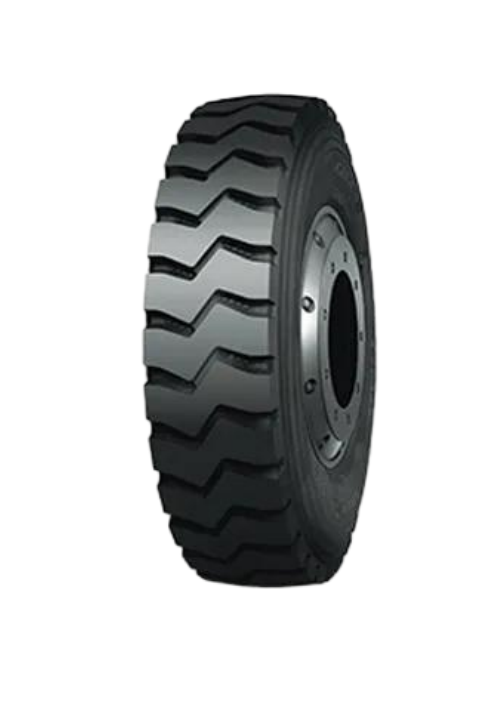

Chaoyang CB332

CB332 is a mining-duty drive tire featuring a large, deep block tread pattern for superior traction, chipping resistance, and puncture resistance in rugged off-road conditions.


Product Parameter (Specification)

Size	LR / PR	Service Index	Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure - Single (kg)	Max. Load Capacity at Cold Inflation Pressure - Single (lbs)	Max. Load Capacity at Cold Inflation Pressure - Single (kPa)	Max. Load Capacity at Cold Inflation Pressure - Single (psi)	Max. Load Capacity at Cold Inflation Pressure - Dual (kg)	Max. Load Capacity at Cold Inflation Pressure - Dual (lbs)	Max. Load Capacity at Cold Inflation Pressure - Dual (kPa)	Max. Load Capacity at Cold Inflation Pressure - Dual (psi)
7.00R16	G/14	118/114J	18	785	200	1320	2910	770	112	1180	2600	770	112
7.50R16	G/14	122/118J	18	815	215	1500	3305	770	112	1320	2910	770	112
8.25R16	H/16	128/124J	16.5	865	235	1800	3970	770	112	1600	3525	770	112
8.25R20	H/16	139/137E	19	974	236	2430	5360	930	135	2300	5070	930	135
9.00R20	H/16	144/142D	20.5	1019	259	2800	6175	900	130	2650	5840	900	130
10.00R20	J/18	149/146D	23.5	1065	278	3250	7160	930	135	3000	6610	930	135
11.00R20	J/18	152/149D	24.5	1096	293	3550	7825	930	135	3250	7165	930	135
12.00R20	J/18	154/151D	25.5	1136	315	3750	8270	830	120	3450	7610	830	120
12.00R24	L/20	160/157C	25.5	1226	315	4500	9920	900	131	4125	9090	900	131

Features of Chaoyang CB332

Special tread compound delivers good anti‑chipping & anti‑chunking performance under tough off‑road conditions
Robust tread blocks improve traction and floating performance on rough uneven roads
Optimized construction for low‑speed mining heavy‑duty service
Multiple sizes available, made in China & Thailand for stable supply

Application

Designed for low‑speed mining dump trucks and heavy‑haul vehicles
Fit for rugged off‑road mine, quarry and construction‑site roads
Size range:7.00R16‑12.00R24, widely compatible for light & heavy mine‑use trucks

Production Details

Core Advantages of Chaoyang CB332 All Position on mixed service

1.Reliable performance for on/off-road applications
2.Strong traction on mud, gravel, and rough roads
3.Excellent cut and chip resistance
4.Long mileage with superior wear resistance
5.Durable construction for heavy-duty operations
