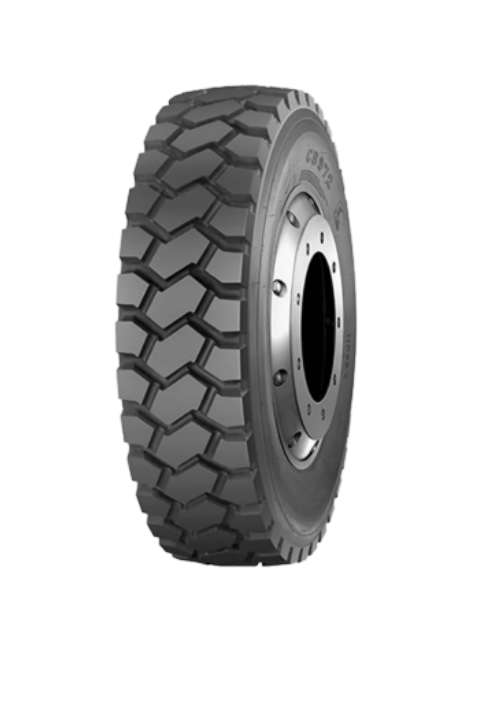

Chaoyang CB972(E) Drive Position

Model:Chaoyang/CB972(E)

Chaoyang CB972(E) Drive Position features aggressive large‑block lug tread for strong traction and braking on muddy‑gravel rough roads with self‑cleaning performance. Suited for mining, quarry and short‑haul highway use, its special compound mitigates chipping and chunking damage.

Send Inquiry

Product Description

Chaoyang CB972(E)

CB972(E) Drive Position is a heavy-duty truck and bus tire engineered for mixed on/off-road service, featuring a deep, aggressive tread designed to handle demanding applications like mining and construction .


Product Parameter (Specification)

Size	LR / PR	Service Index	Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure - Single (kg)	Max. Load Capacity at Cold Inflation Pressure - Single (lbs)	Max. Load Capacity at Cold Inflation Pressure - Single (kPa)	Max. Load Capacity at Cold Inflation Pressure - Single (psi)	Max. Load Capacity at Cold Inflation Pressure - Dual (kg)	Max. Load Capacity at Cold Inflation Pressure - Dual (lbs)	Max. Load Capacity at Cold Inflation Pressure - Dual (kPa)	Max. Load Capacity at Cold Inflation Pressure - Dual (psi)
8.25R16(CB897Z)	H/16	128/124J	18	865	225	1800	3970	770	112	1600	3525	770	112
9.00R20(CB897Z)	H/16	144/142F	22	1019	259	2800	6175	900	130	2650	5840	900	130
10.00R20(CB897Z)	H/16	146/143F	24	1065	278	3000	6610	830	120	2725	6005	830	120
10.00R20(CB897Z)	J/18	152/149F	24.5	1096	293	3550	7825	930	135	3250	7165	930	135
11.00R20(CB897Z)	J/18	154/151F	25.5	1136	315	3750	8270	830	120	3450	7610	830	120
12.00R20(CB897Z)	J/18	156/153F	25.5	1136	315	4000	8820	900	131	3650	8050	900	131
12.00R24(CB897Z)	L/20	160/157C	25	1226	325	4500	9920	900	131	4125	9090	900	131
12.00R24(CB897Z)	L/20	160/157C	32	1238	315	4500	9920	900	131	4125	9090	900	131
325/95R24(CB897Z)	M/22	162/160D	32	1228	325	4750	10470	850	123	4500	9920	850	123
11R22.5(CB897Z)	G/14	144/142G	23	1065	279	2800	6175	720	105	2650	5840	720	105
11R22.5(CB897Z)	H/16	148/145J	23	1065	279	3150	6940	850	123	2900	6390	850	123
12R22.5(CB897Z)	J/18	152/149F	24.5	1096	300	3550	7830	930	135	3250	7160	930	135
275/70R22.5(CB897Z)	H/16	148/145J	20	964	276	3150	6940	900	130	2900	6390	900	130
295/80R22.5(CB897Z)	H/16	150/147K	21	1050	298	3350	7390	830	120	3075	6780	830	120
295/80R22.5(CB897Z)	J/18	152/149J	21	1050	298	3550	7830	900	131	3250	7160	900	131
11R24.5(CB897Z)	G/14	146/143F	23	1116	279	3000	6610	720	105	2725	6005	720	105
11R24.5(CB897Z)	H/16	149/146F	23	1116	279	3250	7160	830	120	3000	6610	830	120

Features

‑ Aggressive lug pattern with large central blocks, delivers excellent traction & braking performance on muddy‑gravel rough roads, with self‑cleaning property for easy maintenance
‑ Special tread compound resists chipping and chunking under tough off‑road conditions
‑ Versatile for mining, logging, construction, quarry sites, allows very short‑distance highway travel

Application

‑ Red dot: Recommendable position；Yellow dot: Available position
‑ Fit for multiple wheel positions
‑ Suitable for dump trucks working on mine, logging, construction and quarry sites with occasional short highway runs

Production Details

Core Advantages of Chaoyang CB972(E) Drive Position

1.Strong traction for reliable driving performance
2.Long mileage with excellent wear resistance
3.Enhanced grip on wet and slippery roads
4.Efficient heat dissipation for longer service life
5.Durable construction for heavy-load transportation
