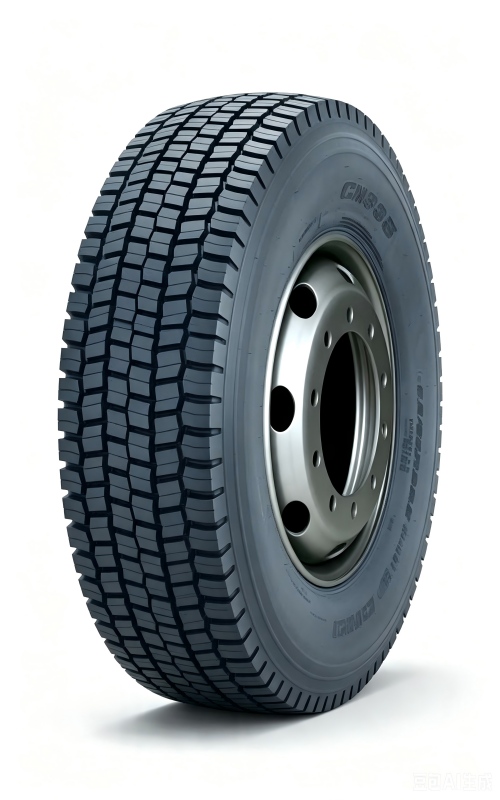

CM335/CM335A are linehaul drive axle tires suitable for heavy trucks and tank trailers on all-season paved highways.
| Tire Size | LR/PR | Service Index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Single Load (kg) | Single Load (lbs) | Single Inflation Pressure (kPa) | Single Inflation Pressure (psi) | Dual Load (kg) | Dual Load (lbs) | Dual Inflation Pressure (kPa) | Dual Inflation Pressure (psi) |
| 495/45R22.5(CM335) | L/20 | 169K | 19 | 17 | 1018 | 500 | 5800 | 12800 | 900 | 130 | - | - | - | - |
| 11R22.5(CM335) | G/14 | 144/142M | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5(CM335) | H/16 | 148/145M | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
| 12R22.5(CM335A) | J/18 | 152/149L | 20 | 9 | 1085 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 295/60R22.5(CM335) | J/18 | 150/147K | 19 | 9 | 926 | 292 | 3350 | 7390 | 900 | 131 | 3075 | 6780 | 900 | 131 |
| 315/60R22.5(CM335) | L/20 | 154/150L(152/148M) | 18 | 9.75 | 950 | 313 | 3750 | 8270 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 315/70R22.5(CM335) | L/20 | 154/150L | 18 | 9 | 1020 | 312 | 3750 | 8270 | 900 | 130 | 3350 | 7390 | 900 | 130 |
| 295/80R22.5(CM335) | H/16 | 150/147M | 18 | 9 | 1050 | 298 | 3350 | 7390 | 900 | 130 | 3075 | 6780 | 900 | 130 |
| 295/80R22.5(CM335) | J/18 | 152/149M | 18 | 9 | 1050 | 298 | 3550 | 7830 | 900 | 131 | 3250 | 7160 | 900 | 131 |
| 315/80R22.5(CM335) | J/18 | 154/151M(156/150L) | 20.6 | 9 | 1082 | 312 | 3750 | 8270 | 900 | 130 | 3450 | 7610 | 900 | 130 |
| 315/80R22.5(CM335) | L/20 | 157/154K | 20.6 | 9 | 1082 | 312 | 4125 | 9090 | 900 | 130 | 3750 | 8270 | 900 | 130 |
Product Features
Specially engineered for long-distance highway drive axles, delivering outstanding performance and long service life
Large block tread pattern optimizes handling and all-season highway traction
Stabilized tread bars maintain uniform ground contact and eliminate tire squirm
Low heat generation rubber compound extends mileage, excellent cost-per-kilometer performance
Chaoyang CM335 Linehaul Drive Axle Tire is recommended axle: Drive axle, applicable vehicles: Dry cargo semi-trailers, tank trucks, scenario: All-paved long-haul highway logistics transportation, delivering designed to provide exceptional Performance and Life in Linehaul Drive applications, large block design helps enhance handling and traction on all season highway conditions, tread bars maintain an even footprint and help prevent tyre squirm, cool running compound to promote longer life, Great CPK (Cost Per Kilometer) performer.
Recommended axle: Drive axle
Applicable vehicles: Dry cargo semi-trailers, tank trucks
Scenario: All-paved long-haul highway logistics transportation
Core Advantages of Chaoyang CM335 Drive Position
1.Designed to provide exceptional Performance and Life in Linehaul Drive applications
2.Large block design helps enhance handling and traction on all season highway conditions
3.Tread bars maintain an even footprint and help prevent tyre squirm
4.Cool running compound to promote longer life, Great CPK (Cost Per Kilometer) performer
