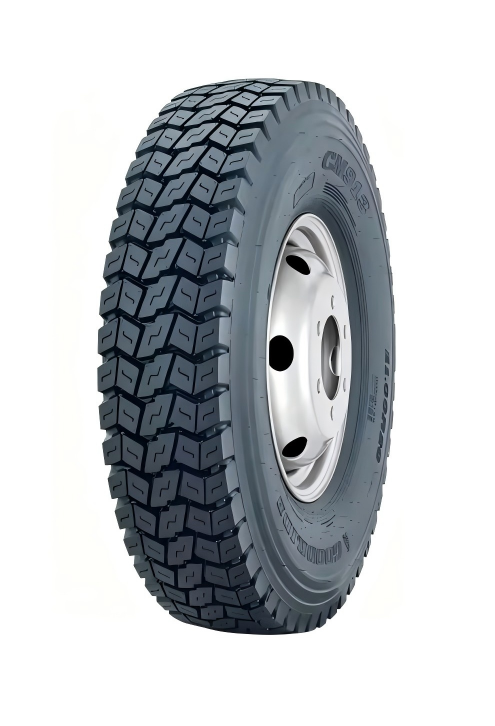

Chaoyang CM913(A) Drive Position

Model:Chaoyang/CM913(A)

Chaoyang CM913(A) Drive Position tyre built for mud‑sand terrain with limited highway usage. Wide tread plus open shoulder blocks boost traction & braking over muddy/gravel roads. Special compound effectively prevents chipping, chunking and tearing for heavy‑duty trucks.

Send Inquiry

Product Description

Chaoyang CM913(A)

CM913(A) is a drive-position tire engineered for trucks and buses operating in demanding on/off-road mixed service conditions, with an emphasis on durability and traction in challenging terrains.


Product Parameter (Specification)

Size	LR / PR	Service index	Tread Depth(mm)	Overall Diameter(mm)	Section Width(mm)	Single‑kg	Single‑lbs	Single‑kPa	Single‑psi	Dual‑kg	Dual‑lbs	Dual‑kPa	Dual‑psi
7.00R16(CM913)	G/14	118/114L	16	815	215	1500	2910	770	112	1180	2600	770	112
8.25R20(CM913)	H/16	139/137K	16.5	974	236	2430	5360	930	135	2300	5070	930	135
9.00R20(CM913)	H/16	144/142K	20	1019	259	2800	6175	900	130	2650	5840	900	130
10.00R20(CM913)	H/16	146/143K	20	1054	278	3000	6610	830	120	2725	6005	830	120
10.00R20(CM913)	J/18	149/146J	20	1054	278	3250	7160	930	135	3000	6610	930	135
11.00R20(CM913)	J/18	152/149J	20.6	1085	293	3550	7825	930	135	3250	7165	930	135
11.00R20(CM913A)	J/18	152/149K	18.6	1085	293	3550	7825	930	135	3250	7165	930	135
12.00R20(CM913)	J/18	154/151K	22	1125	315	3750	8270	830	120	3450	7610	830	120
12.00R20(CM913)	L/20	156/153J	22	1125	315	4000	8820	900	131	3650	8050	900	131
12.00R20(CM913A)	J/18	154/151K	19	1125	315	3750	8270	830	120	3450	7610	830	120
12.00R20(CM913A)	L/20	156/153J	19	1125	315	4000	8820	900	131	3650	8050	900	131
12.00R24(CM913A)	L/20	160/157K	19	1226	315	4500	9920	900	131	4125	9090	900	131
325/95R24(CM913A)	M/22	162/160K	19	1228	325	4750	10470	850	123	4500	9920	850	123
12R22.5(CM913A)	J/18	152/149L	20.6	1085	300	3550	7830	930	135	3250	7160	930	135
13R22.5(CM913A)	J/18	156/151K	20	1124	320	4000	8820	875	128	3450	7610	875	128
275/70R22.5(CM913A)	H/16	148/145/L	18	964	276	3150	6940	900	130	2900	6395	900	130
315/80R22.5(CM913A)	J/18	154/151M(156/150L)	19	1082	312	3750	8270	830	120	3450	7610	830	120
315/80R22.5(CM913A)	L/20	157/154K	19	1082	312	4125	9090	900	130	3750	8270	900	130

Features

‑ Drive‑axle dedicated tyre, suitable for mud & sand terrain with short‑distance highway operation
‑ Wide tread plus open shoulder blocks, improve traction and braking performance on muddy, gravel rough roads
‑ Special tread compound delivers excellent resistance against chipping, chunking and tearing
‑ Rich size range, dual‑source production from China & Thailand for stable supply

Application

‑ Mainly for drive axle
‑ Fit for dump trucks, tankers and cargo trucks working on mixed muddy‑gravel terrain plus short highway transport

Production Details

Core Advantages of Chaoyang CM913(A) Drive Position

1.Strong traction for reliable driving performance
2.Long mileage with excellent wear resistance
3.Superior grip on wet and slippery roads
4.Efficient heat dissipation for durability
5.Heavy-duty construction with strong load capacity
