Chaoyang CM983 Drive Positio

Model:Chaoyang/CM983

Chaoyang CM983 tyre is for long-haul transport. Wide, deep tread facilitates uniform wear and longer mileage to cut per-mile costs. Solid closed shoulders avoid irregular wear; three deep grooves efficiently drain water for reliable wet grip. Robust casing resists cuts and punctures to boost durability and casing service life.

Send Inquiry

Product Description

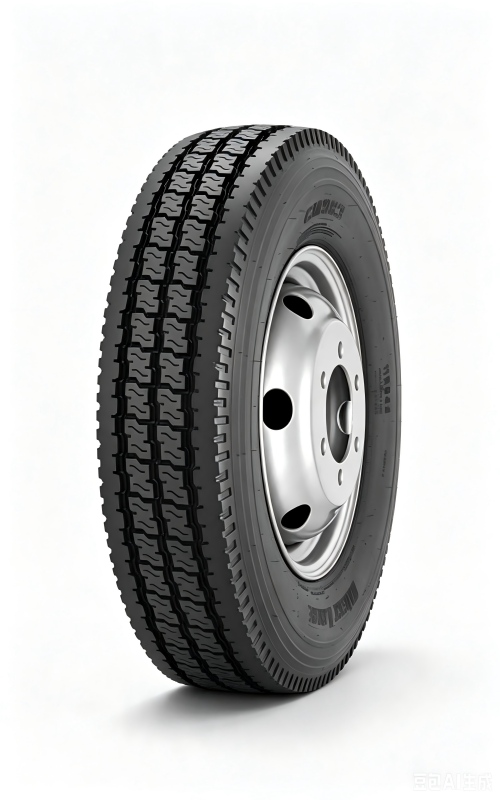

Chaoyang CM983

CM983 is a drive axle tire engineered for heavy trucks and tank trailers for operation on paved highway surfaces.


Product Parameter (Specification)

Tire Size	LR/PR	Service Index	Tread Depth (mm)	Standard Rim	Overall Diameter (mm)	Section Width (mm)	Single Load (kg)	Single Load (lbs)	Single Inflation Pressure (kPa)	Single Inflation Pressure (psi)	Dual Load (kg)	Dual Load (lbs)	Dual Inflation Pressure (kPa)	Dual Inflation Pressure (psi)
10.00R20	H/16	146/143K	18	7.5	1054	278	3000	6610	830	120	2725	6005	830	120
10.00R20	J/18	149/146J	18	7.5	1054	278	3250	7160	930	135	3000	6610	930	135
225/70R19.5	G/14	128/126L	15.5	6.75	811	226	1800	3970	760	110	1700	3750	760	110
11R22.5	G/14	144/142L	20.6	8.25	1065	279	2800	6175	720	105	2650	5840	720	105
11R22.5	H/16	148/145L	20.6	8.25	1065	279	3150	6940	850	123	2900	6390	850	123
295/75R22.5	G/14	144/141L	20.6	9	1020	298	2800	6175	760	110	2575	5675	760	110
11R24.5	G/14	146/143L	20.6	8.25	1116	279	3000	6610	720	105	2725	6005	720	105
11R24.5	H/16	149/146L	20.6	8.25	1116	279	3250	7160	830	120	3000	6610	830	120
285/75R24.5	G/14	144/141L	20.6	8.25	1056	283	2800	6175	760	110	2575	5675	760

Features of Chaoyang CM983

Product Features

Wide & deep tread design ensures uniform tread wear, extends service life and cuts mileage cost
Solid closed shoulder ribs effectively prevent irregular wear
Three wide deep drainage grooves quickly disperse water to secure stable wet traction
Reinforced robust casing resists cuts and punctures, improving durability and long casing service life

Advantage

Chaoyang CM983 Drive Axle Tire is recommended axle: Drive axle, suitable for dry van semi-trailers and tank trucks, optimized for all-paved long-distance highway freight transport, delivering solid cose shoulder ribs help to improve even wearThree deep grooves evacuate water efficiently for traction, wide and deep tread helps to promote even wear and long tread life resulting in low cost per mile, strong casing resists cuts and punctures for enhanced toughness and long casing life.

Application：

Recommended axle: Drive axle
Suitable for dry van semi-trailers and tank trucks
Optimized for all-paved long-distance highway freight transport

Production Details

Core Advantages of Chaoyang CM983 Drive Position

1.Solid cose shoulder ribs help to improve even wearThree deep grooves evacuate water efficiently for traction
2.Wide and deep tread helps to promote even wear and long tread life resulting in low cost per mile
3.Strong casing resists cuts and punctures for enhanced toughness and long casing life
