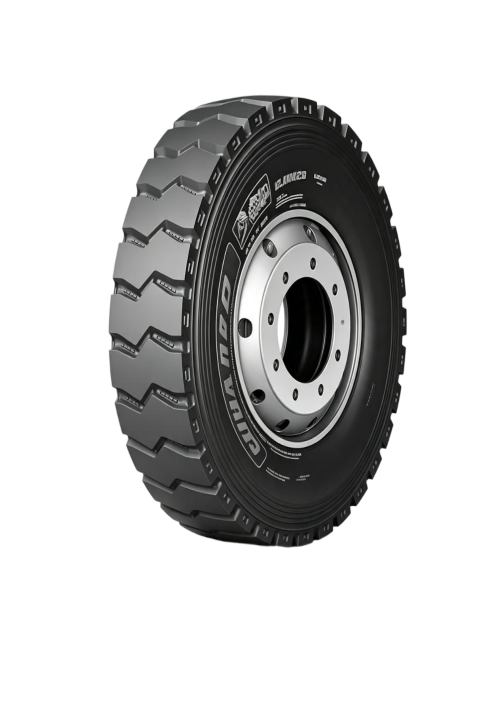

Chaoyang EZ870 Drive Position

Model:Chaoyang/EZ870

Chaoyang EZ870 Drive Position is a flagship mining‑spec tyre built with PSCT concept. Robust blocks and tie‑bar design resist deformation, while stone‑ejector platforms avoid stone piercing. Special mining compound fights chipping‑tearing for longer mileage in harsh mining sites.

Send Inquiry

Product Description

Chaoyang EZ870

EZ870 is a flagship mining tire built for extreme durability and traction in tough off-road conditions.


Product Parameter (Specification)

Size	LR / PR	Service Index	Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure - Single (kg)	Max. Load Capacity at Cold Inflation Pressure - Single (lbs)	Max. Load Capacity at Cold Inflation Pressure - Single (kPa)	Max. Load Capacity at Cold Inflation Pressure - Single (psi)	Max. Load Capacity at Cold Inflation Pressure - Dual (kg)	Max. Load Capacity at Cold Inflation Pressure - Dual (lbs)	Max. Load Capacity at Cold Inflation Pressure - Dual (kPa)	Max. Load Capacity at Cold Inflation Pressure - Dual (psi)
6.50R16	F/12	110/105F	13.5	185	75	1060	2335	670	97	925	2040	670	97
7.00R16	G/14	118/114F	19	865	235	1900	2910	770	112	1180	2600	770	112
7.50R16	G/14	122/118F	16.5	215	81.5	1500	3305	770	112	1320	2910	770	112
8.25R16	H/16	128/124F	19	235	86.5	1800	3970	770	112	1600	3525	770	112
9.00R20	H/16	144/142E	24.5	1019	259	2800	6175	900	130	2650	5840	900	130
10.00R20	J/18	149/146D	25	1065	278	3250	7160	930	135	3000	6610	930	135
11.00R20	J/18	152/149D	24.5	1096	293	3550	7825	930	135	3250	7165	930	135
12.00R20	J/18	154/151F	25.5	1136	315	3750	8270	830	120	3450	7610	830	120
12.00R20	L/20	156/153F	25.5	1136	315	4000	8820	900	131	3650	8050	900	131
12R22.5	J/18	152/149F	24.5	1096	300	3550	7830	930	135	3250	7160	930	135
13R22.5	J/18	156/151D	25.5	1136	320	4000	8820	875	128	3450	7610	875	128

Features

‑ Super‑robust tread blocks deliver powerful traction for off‑road mining conditions
‑ Central tie‑bar structure reduces tread longitudinal elongation and deformation
‑ Built‑in stone ejector platforms prevent stone drilling and protect tread from damage
‑ Adopt PSCT design concept, special mining‑grade compound resists chipping, chunking and tearing, extending tyre service life & mileage

Application

‑ Recommended for drive axle
‑ Flagship mining‑service tyre for heavy‑duty mining dump trucks, suitable for harsh mine off‑road sites

Production Details

Core Advantages of Chaoyang EZ870 Drive Position

1.Strong traction for powerful driving performance
2.Long mileage with excellent wear resistance
3.Superior grip on wet and slippery roads
4.Efficient heat dissipation for durability
5.Durable construction for heavy-load transportation
