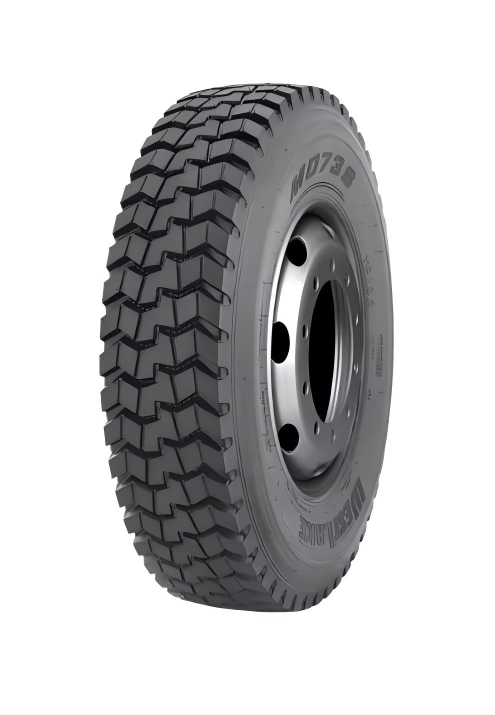

Chaoyang MD738(A) Drive Position

Model:Chaoyang/MD738(A)

Chaoyang MD738(A) Drive Position optimized for on‑off drive axle service. Its aggressive self‑cleaning tread with lateral grooves provides stable all‑weather performance. Reliable grip both on paved highways and rugged unpaved roads for heavy‑duty transport fleets.

Send Inquiry

Product Description

Chaoyang MD738(A)

MD738(A) is a drive-position tire engineered for trucks and buses operating in mixed on/off-road conditions.


Product Parameter (Specification)

Size	LR / PR	Service index	Tread Depth(mm)	Overall Diameter(mm)	Section Width(mm)	Single‑kg	Single‑lbs	Single‑kPa	Single‑psi	Dual‑kg	Dual‑lbs	Dual‑kPa	Dual‑psi
9.5R17.5(MD738)	G/14	129/127L	16.5	842	240	1850	4080	750	109	1750	3860	750	109
9.5R17.5(MD738)	H/16	143/141J	16.5	842	240	2725	6005	875	128	2575	5675	875	128
9.5R17.5(MD738A)	G/14	129/127L	15	842	240	1850	4080	750	109	1750	3860	750	109
9.5R17.5(MD738A)	H/16	143/141J	15	842	240	2725	6005	875	128	2575	5675	875	128
215/75R17.5(MD738)	H/16	135/133J	15	767	211	2180	4805	850	123	2060	4540	850	123
235/75R17.5(MD738)	G/14	132/130M	16	797	233	2000	4410	775	112	1900	4190	775	112
235/75R17.5(MD738)	H/16	143/141J	16	797	233	2725	6005	875	128	2575	5675	875	128
11R22.5(MD738)	G/14	144/142L	20.6	1065	279	2800	6175	720	105	2650	5840	720	105
11R22.5(MD738)	H/16	148/145L	20.6	1065	279	3150	6940	850	123	2900	6390	850	123
12R22.5(MD738)	J/18	152/149L	20.6	1085	300	3550	7830	930	135	3250	7160	930	135
275/70R22.5(MD738)	H/16	148/145J	18	964	276	3150	6940	900	130	2900	6395	900	130
295/80R22.5(MD738)	H/16	150/147L	20.6	1050	298	3350	7390	830	120	3075	6780	830	120
295/80R22.5(MD738)	J/18	152/149L	20.6	1050	298	3550	7830	900	131	3250	7160	900	131
11R24.5(MD738)	G/14	146/143L	22.6	1116	279	3000	6610	720	105	2725	6005	720	105
11R24.5(MD738)	H/16	149/146L	22.6	1116	279	3250	7160	830	120	3000	6610	830	120

Features

‑ Delivers excellent traction for on‑off road drive‑axle applications
‑ Aggressive tread pattern with lateral grooves for optimal self‑cleaning performance
‑ Stable performance in all‑weather conditions, both on‑highway and off‑road
‑ Comprehensive size portfolio, dual‑source production from China & Thailand

Application：

‑ Designed for drive axle
‑ Suitable for dump trucks, tankers and cargo trucks for mixed on‑off‑road transport

Production Details

Core Advantages of Chaoyang MD738(A) Drive Position

1.Strong traction for powerful driving performance
2.Long mileage with excellent wear resistance
3.Superior grip on wet and slippery roads
4.Efficient heat dissipation for durability
5.Heavy-duty construction with strong load capacity
