Product Introduction
Double Coin -RLB1
Double Coin RLB1 Commercial Truck Tire is a drive position tire for commercial trucks designed for regional and long-haul transportation. It is suitable for drive axles operating on highways, national roads, and mixed road conditions. The optimized tread pattern provides excellent traction and braking performance, while the durable tread compound enhances wear resistance and mileage. Its reinforced casing structure improves load-carrying capacity and retreadability, making the RLB1 a reliable and cost-effective choice for commercial fleets.

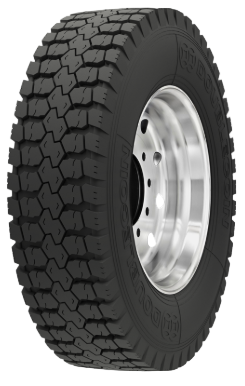

Picture:
Product Parameter
| TIRE SIZE | PR | LOAD INDEX | SPEED SYMBOL | OVERALL DIAMETER (mm) | SECTION WIDTH (mm) | TREAD DEPTH (mm) | TREAD ARC WIDTH (mm) | RIM |
|---|---|---|---|---|---|---|---|---|
| 205/75R17.5 | 16PR(LRH) | 124/122 | M | 757 | 202 | 15.5 | 162 | 6.00 |
| 215/75R17.5 | 16PR(LRH) | 127/124 | M | 775 | 214 | 15.5 | 172 | 6.00 |
| 225/75R17.5 | 16PR(LRH) | 129/127 | M | 789 | 228 | 15.5 | 183 | 6.75 |
| 245/70R17.5 | 16PR(LRH) | 136/134 | M | 792 | 246 | 15.5 | 197 | 7.50 |
| 225/70R19.5 | 12PR(LRF) | 125/123 | K | 825 | 224 | 15.5 | 176 | 6.75 |
| 225/70R19.5 | 14PR(LRG) | 128/126 | N | 825 | 224 | 15.5 | 176 | 6.75 |
| 245/70R19.5 | 14PR(LRG) | 133/131 | M | 848 | 245 | 15.5 | 196 | 7.50 |
| 245/70R19.5 | 16PR(LRH) | 136/134 | K | 848 | 245 | 15.5 | 196 | 7.50 |
| 8.25R20 | 14PR(LRG) | 136/134 | J | 976 | 235 | 15 | 169 | 6.5 |
| 10.00R20 | 16PR(LRH) | 146/143 | L | 1056 | 274 | 17.5 | 220 | 7.5 |
| 10.00R20 | 18PR(LRJ) | 149/146 | J | 1056 | 274 | 17.5 | 220 | 7.5 |
| 12.00R20 | 16PR | 152/149 | J | 1130 | 310 | 19 | 240 | 8.5 |
| 12.00R20 | 18PR(LRJ) | 154/151 | J | 1130 | 310 | 19 | 240 | 8.5 |
| 12.00R20 | 18PR★(LRJ) | 154/151 | J | 1130 | 310 | 19 | 240 | 8.5 |
| 10R22.5 | 16PR(LRH) | 144/142 | J | 1024 | 255 | 17 | 194 | 7.50 |
| 11R22.5 | 14PR(LRG) | 144/142 | M | 1057 | 276 | 21 | 212 | 8.25 |
| 11R22.5 | 16PR(LRH) | 148/145 | M | 1057 | 276 | 21 | 212 | 8.25 |
| 12R22.5 | 18PR(LRJ) | 152/149 | J | 1093 | 300 | 18.5 | 232 | 9.00 |
| 255/70R22.5 | 16PR(LRH) | 140/137 | J | 933 | 253 | 17.5 | 205 | 7.50 |
| 295/75R22.5 | 14PR(LRG) | 144/141 | L | 1040 | 297 | 20.5 | 226 | 9.00 |
| 295/75R22.5 | 16PR(LRH) | 146/143 | J | 1040 | 297 | 20.5 | 226 | 9.00 |
| 315/80R22.5 | 18PR(LRJ) | 156/152 | M | 1087 | 310 | 21 | 230 | 9.00 |
| 11R24.5 | 14PR(LRG) | 146/143 | L | 1109 | 276 | 21 | 212 | 8.25 |
| 11R24.5 | 16PR(LRH) | 149/146 | L | 1109 | 276 | 21 | 212 | 8.25 |
| 11R24.5 | 16PR+(LRH) | 149/146 | L | 1109 | 276 | 21 | 212 | 8.25 |
| 285/75R24.5 | 14PR(LRG) | 144/141 | L | 1064 | 277 | 20.5 | 220 | 8.25 |
| 285/75R24.5 | 16PR(LRH) | 147/144 | J | 1064 | 277 | 20.5 | 220 | 8.25 |
| 285/75R24.5 | 16PR+(LRH) | 147/144 | J | 1064 | 277 | 20.5 | 220 | 8.25 |
| 8.25R16LT | 14PR | 126/122 | L | 867 | 232 | 15 | 168 | 6.50H |
| 8.25R16LT | 16PR | 128/124 | L | 867 | 232 | 15 | 168 | 6.50H |
| 9.00R16LT | 16PR(LRH) | 134/129 | L | 910 | 255 | 15.5 | 197 | 6.50H |
Product Feature And Application
Feature:
Drive Position Design (D)
Specially designed for drive axle applications, delivering excellent traction, braking performance, and power transmission efficiency for commercial trucks；
Deep Aggressive Tread Pattern
Provides strong grip and outstanding traction on highways, regional roads, and mixed road conditions, while enhancing wear resistance and extending tire service life；
Optimized Tread Compound
Improves resistance to cuts, chips, and irregular wear, helping maintain stable performance under demanding operating conditions；
Reinforced Casing Construction
Enhances load-carrying capacity, durability, and retreadability, reducing overall fleet operating costs；
Advantage:
Double Coin RLB1 Drive Position Commercial Truck Tire delivers excellent traction and mileage performance, helping fleets maximize productivity and reduce tire replacement frequency. Reinforced Structure & Deep Tread Design provide stronger driving force, improved stability, enhanced durability, and more even wear throughout the tire's service life.
Application:
Drive axle use for commercial trucks operating on highways, regional roads, and mixed paved-road transportation conditions.
Production Details
Core Advantages of Double Coin RLB1 Drive Position Commercial Truck Tire
1.Excellent Mileage Performance
2.Superior Traction Performance
3.Enhanced Braking Capability
4.High Load-Carrying Capacity
5.R&D and Certification Systems: Participates in Chinese tire standard development; holds international certifications (U.S. DOT, EU ECE, etc.)
6.Designed for highway, regional, and mixed-road transportation, delivering stable performance, durability, and reliability across diverse operating environments.
