Product Introduction
REM9 is a deep-tread traction radial mining tire with powerful traction and high load resistance, designed for mining haul trucks working under harsh operating conditions.

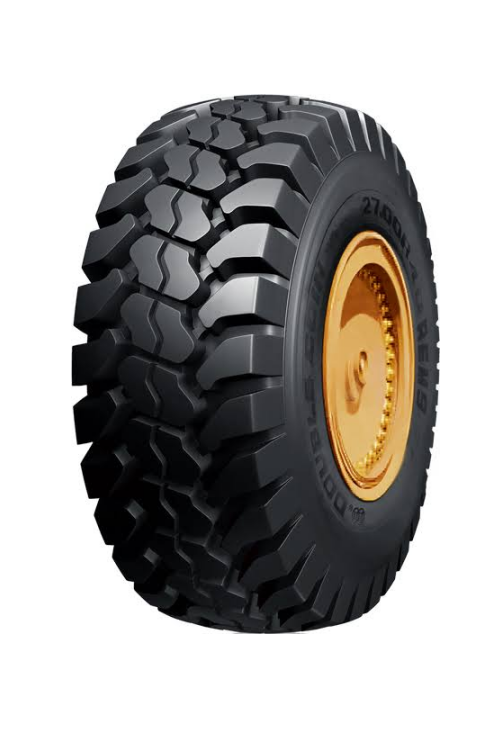

Picture:
Product Parameter
| Size | Strength Rating | Speed (km/h) | Speed Symbol | Overall Diameter (mm) | Section Width (mm) | Tread Depth (mm) | Standard Rim | Single Load (kg) | Inflation Pressure (kPa) | Load Index |
| 26.5R25 | ★★ | 50 | B | 1782 | 672 | 55 | 22.00/3.0 | 11500 | 450 | 193 |
| 10 | A2 | 18500 | 575 | 209 | ||||||
| 29.5R25 | ★★ | 50 | B | 1905 | 750 | 60 | 25.00/3.5 | 14000 | 450 | 200 |
| 10 | A2 | 22400 | 575 | 216 | ||||||
| 18.00R33 | ★★ | 50 | B | 1865 | 498 | 53 | 13.00/2.5 | 10900 | 650 | 191 |
| 10 | A2 | 18500 | 800 | 209 | ||||||
| 21.00R33 | ★★ | 50 | B | 1964 | 565 | 55 | 15.00/3.0 | 14000 | 650 | 200 |
| 10 | A2 | 23600 | 850 | 218 | ||||||
| 24.00R35 | ★★ | 50 | B | 2160 | 652 | 69 | 17.00/3.5 | 18500 | 650 | 209 |
| 10 | A2 | 30750 | 800 | 227 |
Product Features
Application
Production Details
Core Advantages of Doublecoin REM9 Heavy-duty dump truck tire
1.Deep tread for long service life in mining heavy‑haul scenarios
2.High‑strength reinforced casing for heavy load capacity
3.Excellent cut‑chip resistance, adapts to harsh gravel & mine roads
4.Multiple compound options to match different working conditions
5.Reliable off‑road traction with non‑directional tread pattern
6.Good retreadability, lowers overall fleet operating costs
