Product Introduction
D969 is an all‑position tire for dump trucks for mixed‑service mine road conditions.

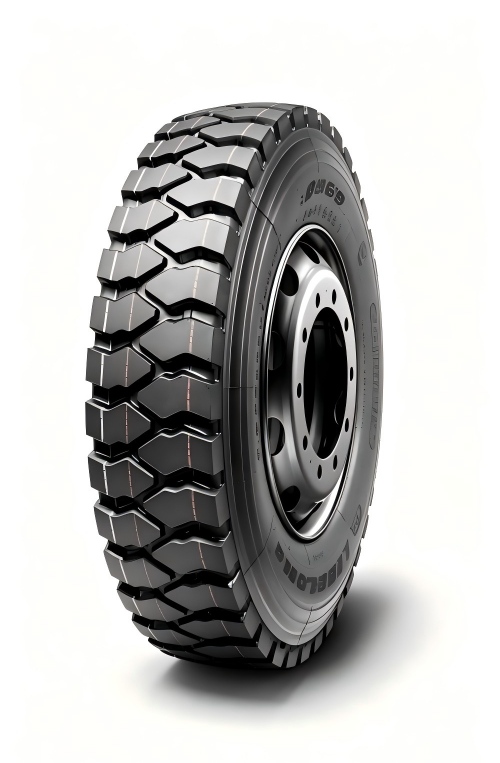

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 7.00R16LT | 12 | F | 5.50F | 1215/1060 | 670/670 | 200 | 785 | 15.5 |
| 7.00R16LT | 14 | F | 5.50F | 1320/1180 | 770/770 | 200 | 785 | 15.5 |
| 7.50R16LT | 12 | F | 6.00G | 1400/1250 | 670/670 | 215 | 815 | 17.5 |
| 7.50R16LT | 14 | F | 6.00G | 1500/1320 | 770/770 | 215 | 815 | 17.5 |
| 8.25R16LT | 12 | F | 6.50H | 1550/1360 | 560/560 | 235 | 865 | 17.5 |
| 8.25R16LT | 14 | F | 6.50H | 1700/1500 | 670/670 | 235 | 865 | 17.5 |
| 8.25R16LT | 16 | F | 6.50H | 1800/1600 | 770/770 | 235 | 865 | 17.5 |
| 8.25R20 | 14 | F | 6.50 | 2240/2120 | 830/830 | 236 | 974 | 21.5 |
| 8.25R20 | 16 | F | 6.50 | 2430/2300 | 930/930 | 236 | 974 | 21.5 |
| 9.00R20 | 16 | F | 7.00 | 2800/2650 | 900/900 | 259 | 1030 | 23.5 |
| 10.00R20 | 18 | F | 7.50 | 3250/3000 | 930/930 | 278 | 1065 | 25.5 |
| 11.00R20 | 18 | F | 8.00 | 3550/3250 | 930/930 | 293 | 1096 | 25.5 |
| 12.00R20 | 18 | F | 8.50 | 3750/3450 | 830/830 | 315 | 1136 | 25.5 |
| 12.00R20 | 20 | F | 8.50 | 4000/3650 | 900/900 | 315 | 1136 | 25.5 |
| 12R22.5 | 18 | J | 9.00 | 3550/3250 | 930/930 | 300 | 1096 | 25 |
Product Feature And Application
D969
Product Feature
‑ Transverse large‑block tread delivers superior traction performance.
‑ Mine‑special compound provides excellent puncture‑resistance, cut‑resistance and anti‑chunking property.
‑ Reinforced bead structure improves heavy‑load carrying capacity.
Application
‑ Suitable for all wheel positions of dump trucks.
‑ Designed for mixed‑service mine working conditions.
Core Advantages of Linglong D969 All Position for Dump truck
1. Reinforced Structural Rigidity & Heavy Load Capacity
2. Mine-Grade Tread Compound for Superior Cut & Puncture Resistance
3. Large Horizontal Block Tread for Powerful Traction & Stability
4. Optimized Shoulder Reinforcement for Anti-Chipping & Anti-Cracking
5. Open V-Type Groove Design for Efficient Self-Cleaning Performance
6. Reliable Durability for Mining & Mountain Short-Haul Harsh Roads
