Product Introduction
KMA400 is an all‑position tire for heavy‑duty dump trucks and trailers, suitable for on‑and‑off‑road short‑to‑medium haul conditions.

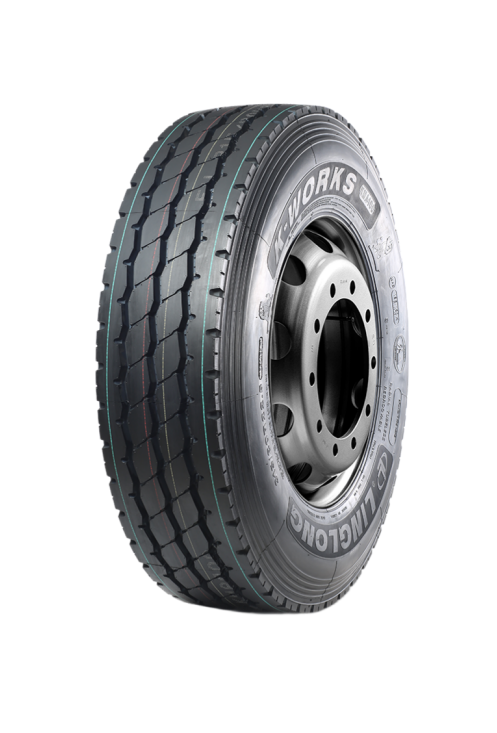

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 8.25R20 | 16 | K | 6.50 | 2430/2300 | 930/930 | 236 | 974 | 15.5 |
| 9.00R20 | 16 | K | 7.00 | 2800/2650 | 900/900 | 259 | 1019 | 16 |
| 10.00R20 | 18 | K | 7.50 | 3250/3000 | 930/930 | 278 | 1054 | 16 |
| 11.00R20 | 18 | K | 8.00 | 3550/3250 | 930/930 | 293 | 1085 | 16.5 |
| 12.00R20 | 18 | K | 8.50 | 3750/3450 | 830/830 | 315 | 1125 | 17 |
| 12.00R20 | 20 | J | 8.50 | 4000/3650 | 900/900 | 315 | 1125 | 17 |
| 12R22.5 | 18 | K | 9.00 | 3550/3250 | 930/930 | 300 | 1085 | 17 |
| 13R22.5 | 18 | K | 9.75 | 3750/3450 | 830/830 | 320 | 1124 | 19 |
Product Feature And Application
KMA400
Product Feature
‑ Wide adaptability, excellent wear resistance and heavy‑load carrying capacity.
‑ Robust construction for reliable performance under harsh on‑and‑off‑road conditions.
Application
‑ Suitable for all wheel positions of heavy‑duty dump trucks and trailers.
‑ Ideal for medium and short‑distance on‑off‑road transportation.
Core Advantages of Linglong KMA400 All Position for Dump truck
1. Superior Load-Bearing & Heavy-Duty Performance
2. High Cut & Wear Resistance for Harsh Roads
3. STRONG-MAX Structure & Anti-Crack Durability
4. Excellent Anti-Stone & Self-Cleaning Ability
5. Low Heat Build-Up & Long Service Life
6. Perfect Adaptability for Dump Truck Short-Haul
