Product Introduction
KMA401 is an all‑position heavy‑load tire for dump trucks and trailers, applied to on‑and‑off‑road medium‑and‑short‑distance transportation.

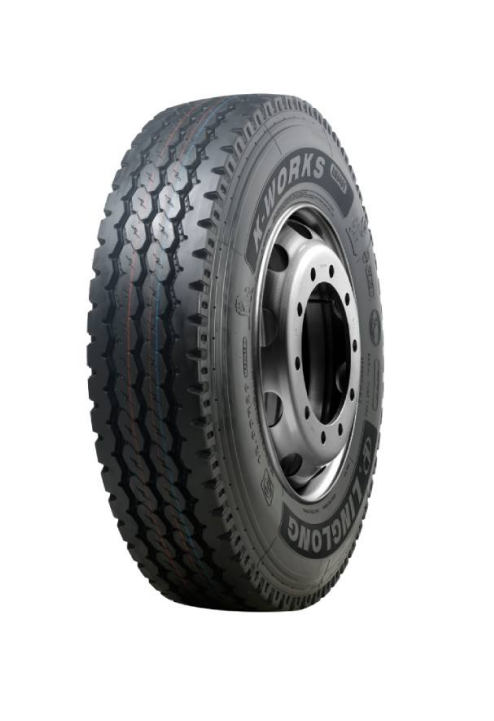

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 12.00R20 | 18 | K | 8.50 | 3750/3450 | 830/830 | 315 | 1125 | 17 |
| 12.00R20 | 20 | J | 8.50 | 4000/3650 | 900/900 | 315 | 1125 | 17 |
| 12R22.5 | 18 | K | 9.00 | 3550/3250 | 930/930 | 300 | 1085 | 17 |
| 13R22.5 | 18 | K | 9.75 | 3750/3450 | 830/830 | 320 | 1124 | 17 |
Product Feature And Application
KMA401
Product Feature
‑ Low heat generation, excellent bead crack resistance and heavy‑load capacity.
‑ Reinforced structure for tough on‑off‑road working conditions.
Application
‑ Fit for all wheel positions of heavy‑duty dump trucks and trailers.
‑ Designed for medium and short‑distance engineering transportation.
Core Advantages of Linglong KMA401 All Position for Dump truck
1. Superior Heavy Load Bearing Capacity
2. Excellent Cut & Wear Resistance for Harsh Roads
3. STRONG-MAX Structure & Crack Prevention
4. Low Heat Build-Up & Extended Service Life
5. Reliable Anti-Stone & Self-Cleaning Performance
6. Professional Adaptability for Short-Haul Engineering Scenarios
