Product Introduction
KMA403 is an all‑position tire for heavy‑duty dump trucks and trailers for on‑and‑off‑road conditions.

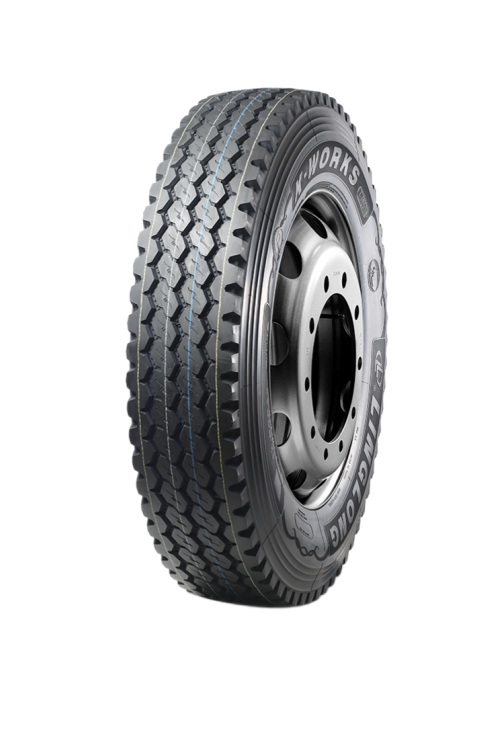

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 12R22.5 | 18 | K | 9.00 | 3550/3250 | 930/930 | 300 | 1085 | 15.5 |
| 13R22.5 | 18 | K | 9.75 | 3750/3450 | 830/830 | 320 | 1124 | 15.5 |
Product Feature And Application
KMA403
Product Feature
‑ Low heat generation, excellent shoulder void‑resistance and high load‑bearing capacity.
‑ Robust structure for severe on‑and‑off‑road heavy‑duty conditions.
Application
‑ Fits all wheel positions for heavy‑duty dump trucks and trailers.
‑ Designed for on‑and‑off‑road heavy‑load transportation.
Production Details
Core Advantages of Linglong KMA403 All Position for Dump truck
1. Heavy-Duty Load Bearing & Strong Structural Rigidity
2. STRONG-MAX Structure Anti-Cavity & Anti-Crack
3. High Wear Resistance & Prolonged Service Life
4. Excellent Anti-Stone & Self-Cleaning Performance
5. Low Heat Build-Up for Stable Operation
6. Superb Adaptability for Mixed Construction Roads
