Product Introduction
LD0983 is an all‑position tire for dump trucks for short‑haul transport on mine mixed road conditions.

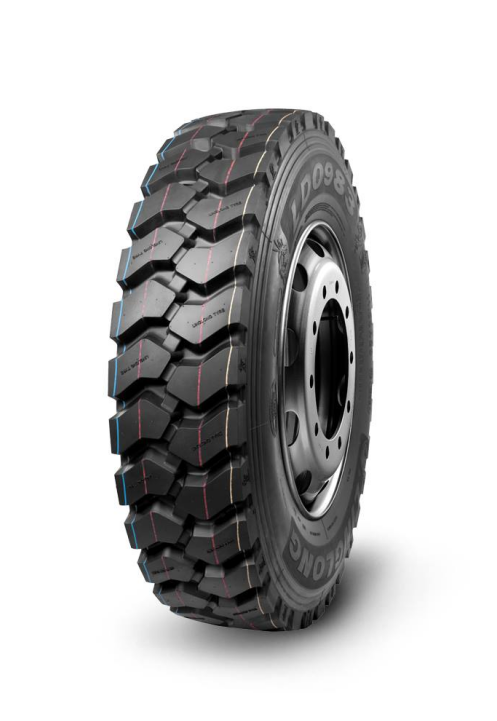

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 295/80R22.5 | 16 | F | 9.00 | 3350/3075 | 830/830 | 298 | 1050 | 22 |
| 295/80R22.5 | 18 | F | 9.00 | 3550/3250 | 900/900 | 298 | 1050 | 22 |
| 12R22.5 | 18 | F | 9.00 | 3550/3250 | 930/930 | 300 | 1096 | 23 |
Product Feature And Application
LD0983 Glory Series
Product Feature
‑ Large‑block tread designed for mixed mine roads. Full‑arc groove bottom with anti‑stone bosses to resist hard‑object piercing and groove‑bottom cracking, with reliable water and mud evacuation performance.
‑ Built‑in MINE‑M mine‑grade structure, anti‑puncture, anti‑chipping, anti‑chunking and anti‑voiding. Patented new belt layer enhances impact‑burst resistance and prevents shoulder void on mixed mine roads.
‑ Service life is 1‑2 months longer than other similar domestic tire products.
Application
‑ Fits all wheel positions of dump trucks.
‑ Mine‑special tire for short‑haul transportation under mixed mine road conditions.
Production Details
Core Advantages of Linglong LD0983 All Position for Dump truck
1. MINE-M Reinforced Structure for Mining-Grade Durability
2. Patented Belt Layer for Anti-Impact & Anti-Burst Performance
3. Full-Arc Groove & Anti-Stone Boss Anti-Crack Design
4. Superior Anti-Chip & Anti-Puncture Harsh Road Resistance
5. Efficient Self-Cleaning & Fast Mud Drainage Capacity
6. Stable Performance for Mining & Construction Short-Haul Roads
