Product Introduction
LD0986 is an all‑position tire for dump trucks applied on mixed mine road surfaces.

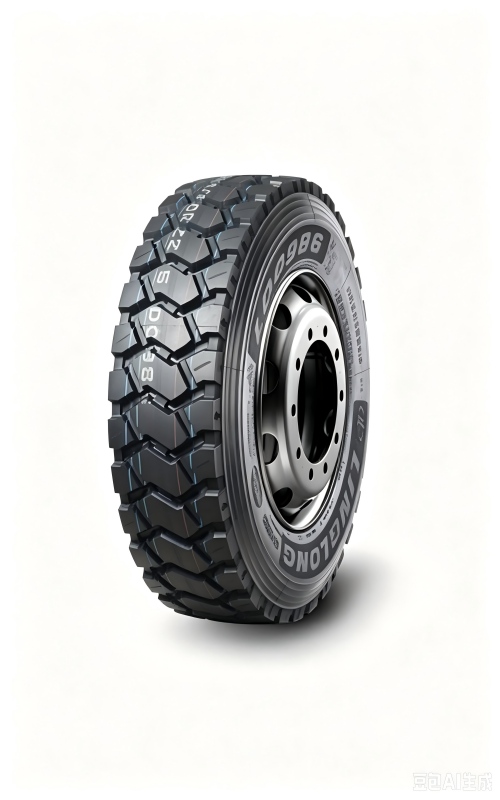

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 295/80R22.5 | 16 | F | 9.00 | 3350/3075 | 830/830 | 298 | 1050 | 24.5 |
| 295/80R22.5 | 18 | F | 9.00 | 3550/3250 | 900/900 | 298 | 1050 | 24.5 |
| 315/80R22.5 | 16 | F | 9.00 | 3450/3150 | 760/760 | 312 | 1082 | 24.5 |
| 315/80R22.5 | 18 | F | 9.00 | 3750/3450 | 830/830 | 312 | 1082 | 24.5 |
| 11R22.5 | 14 | F | 8.25 | 2800/2650 | 720/720 | 279 | 1065 | 24.5 |
| 11R22.5 | 16 | F | 8.25 | 3000/2725 | 830/830 | 279 | 1065 | 24.5 |
| 11R24.5 | 14 | F | 8.25 | 3000/2725 | 720/720 | 279 | 1116 | 24.5 |
| 11R24.5 | 16 | F | 8.25 | 3250/3000 | 830/830 | 279 | 1116 | 24.5 |
| 12R22.5 | 16 | F | 9.00 | 3350/3075 | 830/830 | 300 | 1096 | 24 |
| 12R22.5 | 18 | F | 9.00 | 3550/3250 | 930/930 | 300 | 1096 | 24 |
| 13R22.5 | 18 | F | 9.75 | 3750/3450 | 830/830 | 320 | 1136 | 24 |
| 12.00R20 | 18 | F | 8.50 | 3750/3450 | 830/830 | 315 | 1136 | 24.5 |
| 12.00R20 | 20 | F | 8.50 | 4000/3650 | 900/900 | 315 | 1136 | 24.5 |
Product Feature And Application
LD0986
Product Feature
‑ Excellent puncture‑resistant and self‑cleaning performance, anti‑chipping and anti‑chunking.
‑ Optimized structure design effectively prevents shoulder void issue.
Application
‑ Suitable for all wheel positions of dump trucks.
‑ Designed for mixed mine road surface conditions.
Core Advantages of Linglong LD0986 All Position for Dump truck
1. MINE-M Mining Grade Reinforced Structure
2. Enhanced Anti-Chip & Anti-Delamination Performance
3. Thickened Connecting Ribs for Anti-Crack & Anti-Chunk
4. Premium Tread Compound for Anti-Puncture & Wear Resistance
5.Optimized Pattern Design for Efficient Self-Cleaning
6. Reliable Stability for Mining & Mountain Short-Haul Roads
