Product Introduction
LD0993+ is an all‑position tire for dump trucks for short‑haul transport on mixed mine road conditions.

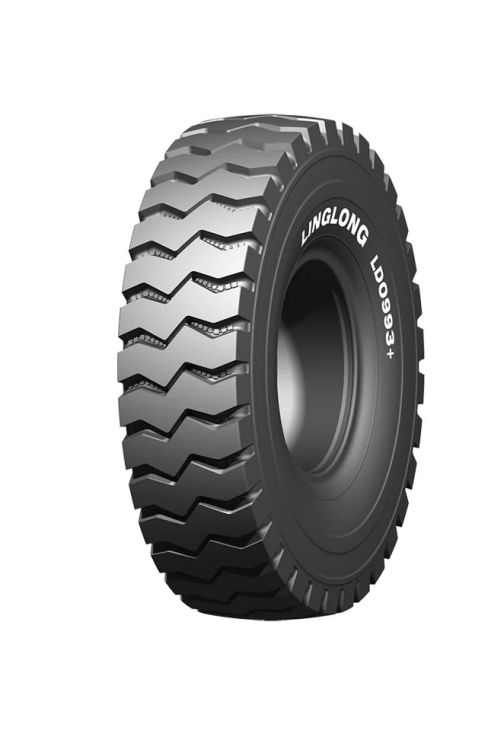

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 12.00R20 | 18 | F | 8.50 | 3750/3450 | 830/830 | 315 | 1136 | 19.5 |
| 12.00R20 | 20 | F | 8.50 | 4000/3650 | 900/900 | 315 | 1136 | 19.5 |
Product Feature And Application
LD0993+
Product Feature
‑ Tread pattern specially developed for mixed mine roads. Full‑arc groove bottom with anti‑stone bosses to resist piercing and groove‑bottom cracking, delivering excellent water and mud evacuation performance.
‑ Adopts MINE‑M mine‑grade technology, anti‑puncture, anti‑chipping, anti‑chunking and anti‑voiding. Patented new belt layer structure improves impact‑burst resistance and avoids shoulder void on mixed mine roads.
‑ Wider contact surface combined with convection air‑duct technology. Low heat build‑up, good heat dissipation and reliable durability for long service life.
Application
‑ Fits all wheel positions of dump trucks.
‑ Special‑purpose tire for mixed mine roads and short‑haul transportation.
Core Advantages of Linglong LD0993+ All Position for Dump truck
1. MINE-M Technology & Heavy-Duty Structural Toughness
2. Advanced Tread Compound for Anti-Tear & Anti-Chip Performance
3. Large Block Pattern for Stable Traction & Braking Power
4. Full-Arc Groove & Anti-Stone Boss Design
5. Optimized Heat Dissipation for Low Heat Build-Up
6. Professional Adaptability for Severe Mining & Muddy Short-Haul Roads
