Product Introduction
LD0993K is an all‑position tire for dump trucks for short‑haul transport under harsh pure mine working conditions.

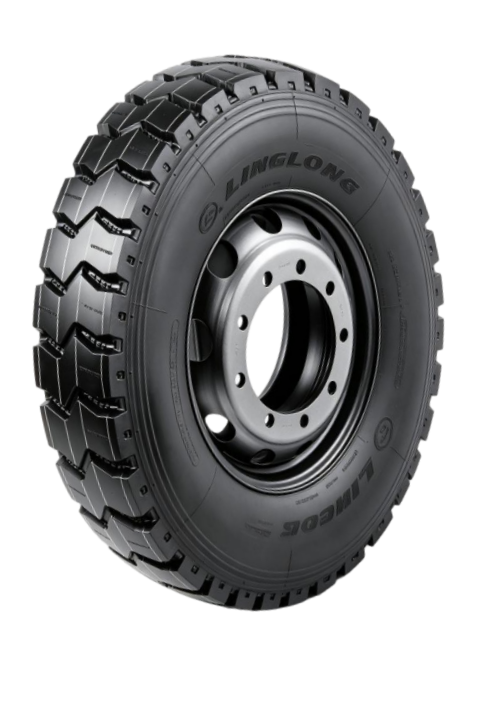

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 11.00R20 | 18 | F | 8.00 | 3550/3250 | 930/930 | 293 | 1096 | 24.5 |
| 12.00R20 | 18 | F | 8.50 | 3750/3450 | 830/830 | 315 | 1136 | 24.5 |
| 12.00R20 | 20 | F | 8.50 | 4000/3650 | 900/900 | 315 | 1136 | 24.5 |
Product Feature And Application
LD0993K Low‑heat‑generation Series
Product Feature
‑ Adopts convection air‑duct technology. Large‑block tread specially engineered for pure mine conditions; full‑arc groove bottom with built‑in bosses to prevent stone piercing and groove‑bottom cracking, delivering excellent water and mud evacuation performance.
‑ Equipped with MINE‑M mine‑oriented technology, resisting puncture, chipping, chunking and voiding. Patented new belt layer structure enhances impact‑burst resistance.
‑ Low heat build‑up and superior heat dissipation for outstanding durability; service life extended by 1‑2 months compared with similar domestic products.
Application
‑ Suitable for all wheel positions of dump trucks.
‑ Special‑purpose tire for harsh pure mine working conditions and short‑haul transportation.
Core Advantages of Linglong LD0993K All Position for Dump truck
1. MINE-M Technology & Heavy-Duty Structural Toughness
2. Advanced Tread Compound for Anti-Tear & Anti-Chip Performance
3. Large Block Pattern for Stable Traction & Braking Power
4. Full-Arc Groove & Anti-Stone Boss Design
5. Optimized Heat Dissipation for Low Heat Build-Up
6. Professional Adaptability for Severe Mining & Muddy Short-Haul Roads
