Product Introduction
LD0999 is an all‑position tire for dump trucks designed for short‑haul transport under harsh pure mine working conditions.

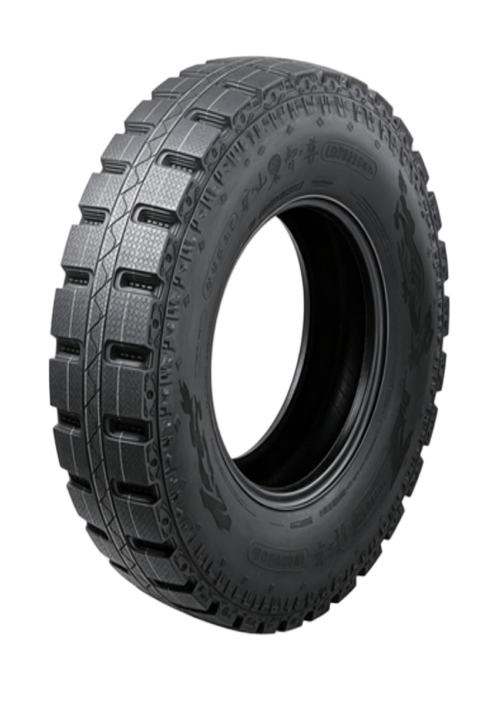

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 11.00R20 | 20 | B | 8.00 | 3650/3350 | 970/970 | 293 | 1096 | 25 |
| 12.00R20 | 22 | B | 8.50 | 4250/3875 | 970/970 | 315 | 1136 | 27 |
LD0999 Zhizun Series
Product Feature
‑ Adopts convection air‑duct technology.
‑ Deeper tread pattern and wider contact surface; upgraded H/S compound system for extended service life.
‑ Reinforced “armor‑style” anti‑rubber‑line design protects sidewall against external impact damage.
Application
‑ Designed for all wheel positions of dump trucks.
‑ Special‑purpose tire for severe pure mine working conditions and short‑haul transportation.
Core Advantages of Linglong LD0999 All Position for Dump truck
1. Ultra-Heavy Load Capacity & Rigid Body Structure
2. Reinforced Armor Design for Anti-Puncture & Anti-Chipping
3. Upgraded H/S Tread Compound for Superior Wear Resistance
4. Deepened Pattern & Widened Tread for Extended Mileage
5. Patented Shoulder Air Ducts for Low Heat Build-Up
6. Professional Adaptability for Severe Mining Short-Haul Conditions
