Product Introduction
LDL831 is a drive‑axle tire for trucks with mahjong‑block pattern, deep grooves and reinforced blocks, delivering strong traction, excellent dry‑and‑wet grip, outstanding wear resistance and extended service life.

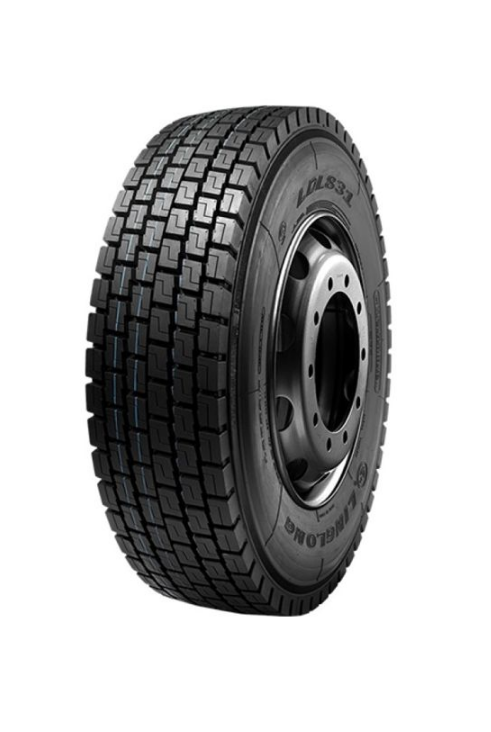

Picture:
Product Parameter
| Size | Ply Rating | Speed Rating | Standard Rim | Standard Load (kg) | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Overall Diameter (mm) | Recommended Tread Depth (mm) |
| 11R22.5 | 14 | L | 8.25 | 2800/2650 | 720/720 | 279 | 1065 | 22 |
| 11R22.5 | 16 | L | 8.25 | 3000/2725 | 830/830 | 279 | 1065 | 22 |
| 12R22.5 | 16 | M | 9.00 | 3350/3075 | 830/830 | 300 | 1096 | 23 |
| 12R22.5 | 18 | M | 9.00 | 3550/3250 | 930/930 | 300 | 1096 | 23 |
| 295/80R22.5 | 16 | L | 9.00 | 3350/3075 | 880/850 | 298 | 1050 | 23 |
| 295/80R22.5 | 18 | L | 9.00 | 3550/3250 | 900/900 | 298 | 1050 | 23 |
| 315/80R22.5 | 18 | L | 9.00 | 3750/3450 | 830/830 | 312 | 1082 | 23 |
| 215/75R17.5 | 14 | M | 6.00 | 1650/1500 | 760/760 | 211 | 767 | 16 |
| 215/75R17.5 | 16 | J | 6.00 | 1750/1600 | 830/830 | 211 | 767 | 16 |
| 235/75R17.5 | 14 | M | 6.75 | 1850/1700 | 760/760 | 233 | 797 | 17 |
| 235/75R17.5 | 16 | J | 6.75 | 2000/1850 | 830/830 | 233 | 797 | 17 |
Product Feature And Application
LDL831
Product Feature
‑ Block‑type tread pattern delivers strong traction and outstanding grip performance on both dry and wet road surfaces
‑ Deepened grooves together with reinforced tread ribs strengthen block rigidity and ensure stable performance
‑ Extra‑wide driving surface with high tread saturation provides superior wear resistance and extends tire service life
Application
‑ Designed for drive axle positions of trucks
‑ Suitable for highway long‑haul standard‑load transportation
‑ Wide size range covers various heavy‑duty commercial vehicle applications
Core Advantages of Linglong LDL831 Drive Position Tire
1.Superior Wear‑resistant & Long‑mileage Performance
2.Effective Anti‑irregular‑wear Capacity
3.Powerful Traction & Wet‑road Grip Performance
4.Enhanced Pattern Block Damage Resistance
5.Ultra‑high‑strength Retreadable Carcass Durability
6.Optimized Performance for Drive‑axle Application
