Product Introduction
LDR988 is a drive‑axle tire for heavy‑duty dump trucks suitable for on‑and‑off‑road working conditions.

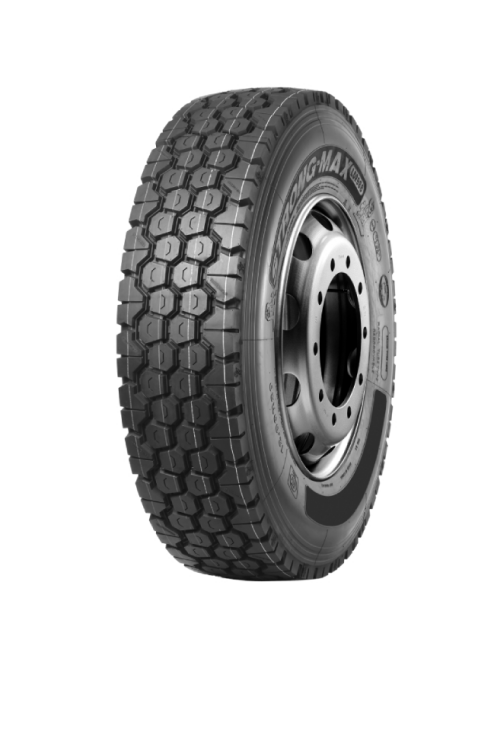

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 9.00R20 | 16 | K | 7.00 | 2800/2650 | 900/900 | 259 | 1019 | 18.00 |
| 10.00R20 | 18 | K | 7.50 | 3250/3000 | 930/930 | 278 | 1054 | 18.00 |
| 11.00R20 | 18 | K | 8.00 | 3550/3250 | 930/930 | 293 | 1085 | 19.00 |
| 12.00R20 | 18 | K | 8.50 | 3750/3450 | 830/830 | 315 | 1125 | 19.00 |
| 12.00R20 | 20 | J | 8.50 | 4000/3650 | 900/900 | 315 | 1125 | 19.00 |
Product Feature And Application
LDR988
Product Feature
‑ Large profile and wide tread surface extend tire service life.
‑ Optimized footprint for heavy‑duty on‑and‑off‑road working conditions.
Application
‑ Specially for drive axle positions of heavy‑duty dump trucks.
‑ Suitable for on‑and‑off‑road heavy‑load transportation.
Core Advantages of Linglong LDR988 Drive Position for Dump truck
1. Powerful Drive Traction for Off-Road Conditions
2. Heavy-Duty Load Bearing & Structural Stability
3. STRONG-MAX Structure Anti-Burst & Anti-Cavity
4. Wide Tread & Large Profile for Longer Mileage
5. High Cut & Wear Resistance for Harsh Roads
6. Excellent Adaptability for Short & Medium Haul Construction
