Product Introduction
LLD09 is a drive‑axle tire for heavy‑duty dump trucks suitable for tough on‑and‑off‑road conditions.

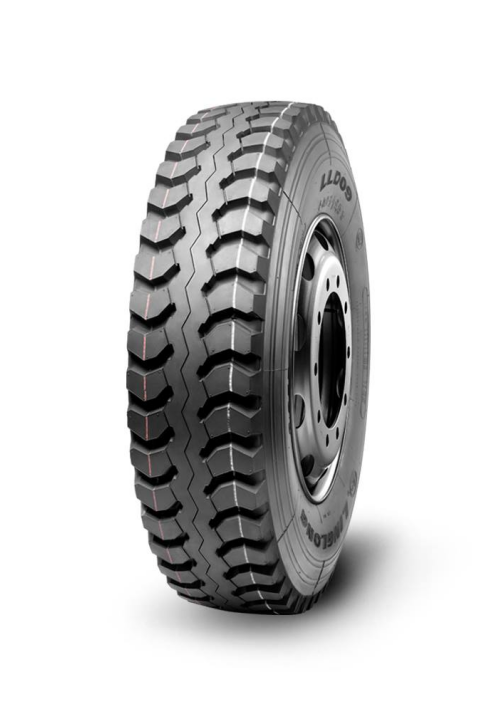

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 8.25R20 | 14 | L | 6.50 | 2240/2120 | 830/830 | 236 | 974 | 14.5 |
| 8.25R20 | 16 | L | 6.50 | 2430/2300 | 930/930 | 236 | 974 | 14.5 |
| 9.00R20 | 14 | K | 7.00 | 2575/2430 | 790/790 | 259 | 1019 | 15.5 |
| 9.00R20 | 16 | K | 7.00 | 2800/2650 | 900/900 | 259 | 1019 | 15.5 |
Product Feature And Application
LLD09
Product Feature
‑ Exclusive tread compound delivers excellent tear resistance, puncture resistance and chipping resistance.
‑ Combined pattern design: lateral shoulder blocks plus zig‑zag longitudinal central grooves, integrating advantages of both lateral and longitudinal treads.
‑ Superior traction and braking performance.
Application
‑ Specially designed for drive axle positions of heavy‑duty dump trucks.
‑ Suitable for harsh mixed on‑and‑off‑road heavy‑load transport conditions.
Core Advantages of Linglong LLD09 Drive Position for Dump truck
1. Hybrid Tread Pattern for Superior Traction & Braking
2. Specialized Tread Compound for Tear & Puncture Resistance
3. Excellent Chipping & Crack Resistance for Harsh Roads
4. Heavy-Duty Load Capacity & Structural Stability
5. Optimized Groove Design for Anti-Stone & Self-Cleaning
6. Premium Durability for Medium & Short-Haul Construction Scenarios
