Product Introduction
LLF06 is an all‑position truck tire designed for highway road conditions.

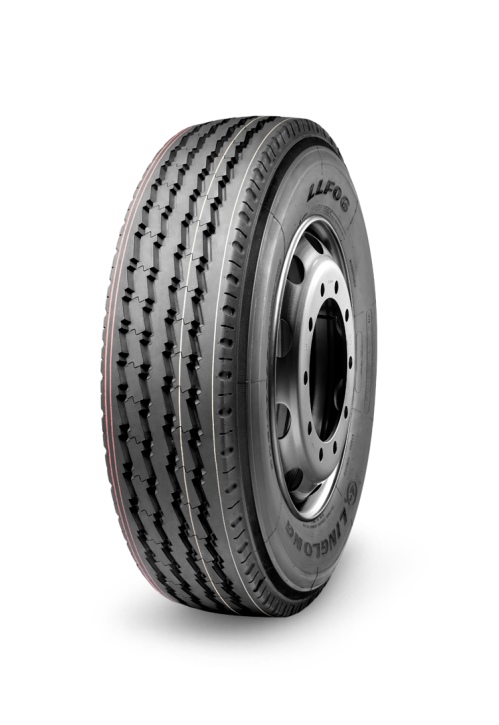

Picture:
Product Parameter
| Tire Size | Ply Rating | Speed Rating | Standard Rim | Standard Load | Corresponding Pressure (kPa) | Inflated Section Width (mm) | Inflated Outer Diameter (mm) | Recommended Tread Depth (mm) |
| 9.00R20 | 14 | L | 7.00 | 2575/2430 | 790/790 | 259 | 1019 | 14 |
| 9.00R20 | 16 | K | 7.00 | 2800/2650 | 900/900 | 259 | 1019 | 14 |
| 10.00R20 | 16 | L | 7.50 | 3000/2725 | 830/830 | 278 | 1054 | 14.5 |
| 10.00R20 | 18 | K | 7.50 | 3250/3000 | 930/930 | 278 | 1054 | 14.5 |
| 11.00R20 | 16 | K | 8.00 | 3350/3075 | 830/830 | 293 | 1085 | 15.5 |
| 11.00R20 | 18 | K | 8.00 | 3550/3250 | 930/930 | 293 | 1085 | 15.5 |
| 11R22.5 | 14 | M | 8.25 | 2800/2650 | 720/720 | 279 | 1054 | 14.5 |
| 11R22.5 | 16 | M | 8.25 | 3000/2725 | 830/830 | 279 | 1054 | 14.5 |
| 12.00R20 | 18 | K | 8.50 | 3750/3450 | 830/830 | 315 | 1125 | 15.5 |
| 315/80R22.5 | 18 | M | 9.00 | 3750/3450 | 830/830 | 312 | 1076 | 14.5 |
Product Feature And Application
LLF06
Product Feature
‑ Resists irregular wear, generates low noise & heat, and delivers stable handling performance.
‑ Continuous shoulder and exclusive groove design ensure low noise and excellent water‑draining capacity.
Application
‑ Built for long‑haul highway transport.
‑ Suitable for all wheel positions of trucks.
Core Advantages of Linglong LLF06 All Position Tire
1. High Wear Resistance & Longer Mileage
2. Low Heat Generation & Stable Operation
3. Anti-Uneven Wear & Optimized Structure
4. Low Noise Design & Smooth Ride
5. Excellent Wet Grip & Fast Drainage
6. Stable Handling & Long-Highway Adaptability
