Product Introduction
Primewell / PAO522
Primewell PAO522 is an all-position heavy-duty truck tire designed for commercial trucks operating on rugged mining and rough off-road working conditions.

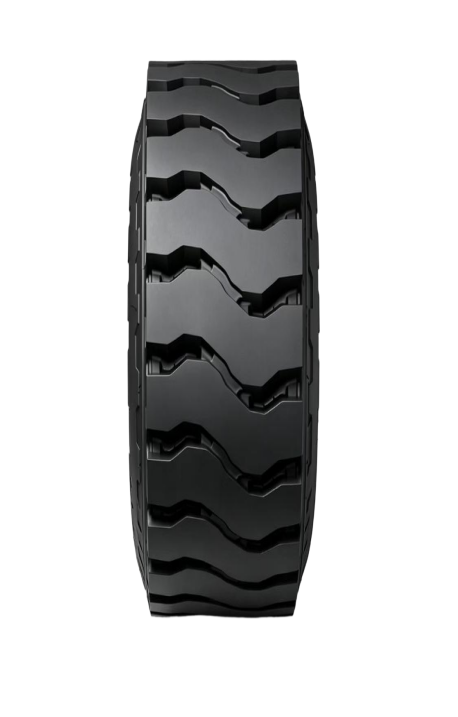

Picture:
Product Parameter
| Specification | Ply Rating | Load Index (Single/Dual) | Speed Symbol | Standard Rim | Rated Load (kg) Single/Dual | Rated Pressure (kPa) Single/Dual | Tread Depth (mm) | Outer Diameter (mm) | Section Width (mm) |
| 11.00R20 | 18PR | 152/149 | D | 8 | 3550/3250 | 930/930 | 25 | 1096 | 293 |
| 12.00R20 | 20PR | 156/153 | D | 8.5 | 4000/3650 | 900/900 | 25 | 1136 | 315 |
Product Feature And Application
Product Feature And Application
Product Features
PA0522 heavy-duty all-position mine tire with deep wavy transverse block tread, 25.0mm ultra-deep tread depth and D speed rating. The wide block tread design delivers powerful off-road traction, outstanding resistance against cut, puncture and chunk detachment. Reinforced multi-layer carcass and belt structure ensures stable heavy-load bearing capacity, perfectly adapting to harsh mine, mountain and construction rugged roads.
Application & Full Specifications
Compatible with steer, drive and trailer axles of mining heavy trucks
Two available sizes:
11.00R20, 18PR, speed grade D, standard rim 8.0
Single rated load: 3550kg; Dual rated load: 3250kg, rated pressure 930kPa
Tread depth 25.0mm, outer diameter 1096mm, section width 293mm
12.00R20, 20PR, speed grade D, standard rim 8.5
Single rated load: 4000kg; Dual rated load: 3650kg, rated pressure 900kPa
Tread depth 25.0mm, outer diameter 1136mm, section width 315mm
Application scenario: Heavy-duty mine, mountain and construction site mixed rugged road freight transport
Production Details
Core Advantages of Primewell PAO522 All position Tire
1.Versatile All-Position Performance
2.Long Tread Life
3.Excellent Wet Grip
4.Enhanced Durability
5.High Load Performance
6.Retreadable Casing
