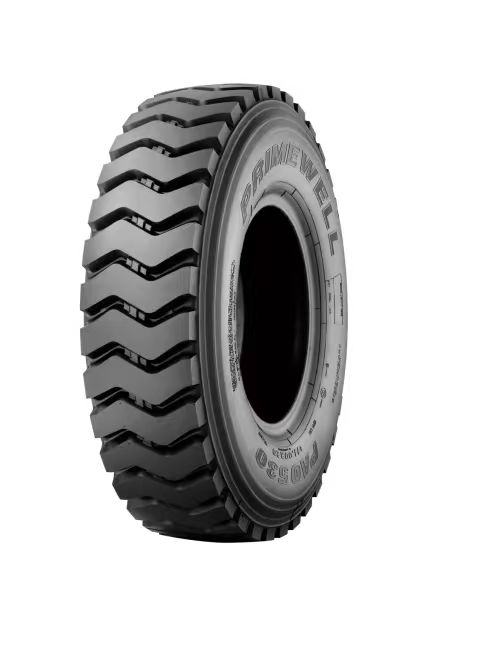

Primewell PAO530 is an all-position heavy-duty truck tire suited for commercial trucks on rugged mining and rough off-road surfaces.
| Specification | Ply Rating | Load Index (Single/Dual) | Speed Symbol | Standard Rim | Rated Load (kg) Single/Dual | Rated Pressure (kPa) Single/Dual | Tread Depth (mm) | Outer Diameter (mm) | Section Width (mm) |
| 8.25R20 | 16PR | 139/137 | F | 6.5 | 2430/2300 | 930/930 | 19 | 986 | 236 |
| 9.00R20 | 16PR | 144/142 | F | 7 | 2800/2650 | 900/900 | 22 | 1030 | 259 |
| 10.00R20 | 18PR | 149/146 | F | 7.5 | 3250/3000 | 930/930 | 22.5 | 1065 | 278 |
| 11.00R20 | 18PR | 152/149 | F | 8 | 3550/3250 | 930/930 | 23 | 1096 | 293 |
| 12.00R20 | 20PR | 156/153 | F | 8.5 | 4000/3650 | 900/900 | 23.5 | 1136 | 315 |
Key Features
All-position heavy-duty mine tire with deep wavy block tread
Powerful off-road traction for rugged mine & construction roads
Enhanced cut, puncture and chunk-off resistance
Reinforced carcass structure for stable heavy load performance
Primewell PAO530 All-Position Heavy-Duty Mine Tire is compatible with steer, drive and trailer axles of mining trucks, designed for short-haul mixed harsh road freight transport, delivering versatile all-position performance, long tread life, excellent wet grip, enhanced durability, high load performance, retreadable casing.
Compatible with steer, drive and trailer axles of mining trucks
Designed for short-haul mixed harsh road freight transport
Full size specifications not fully shown on the graphic
Core Advantages of Primewell PAO530 All position Tire
1.Versatile All-Position Performance
2.Long Tread Life
3.Excellent Wet Grip
4.Enhanced Durability
5.High Load Performance
6.Retreadable Casing
