Product Introduction
Primewell PAO551
Primewell PAO551 is an all-position heavy-duty truck tire engineered for commercial trucks on harsh mining and rough off-road surfaces.

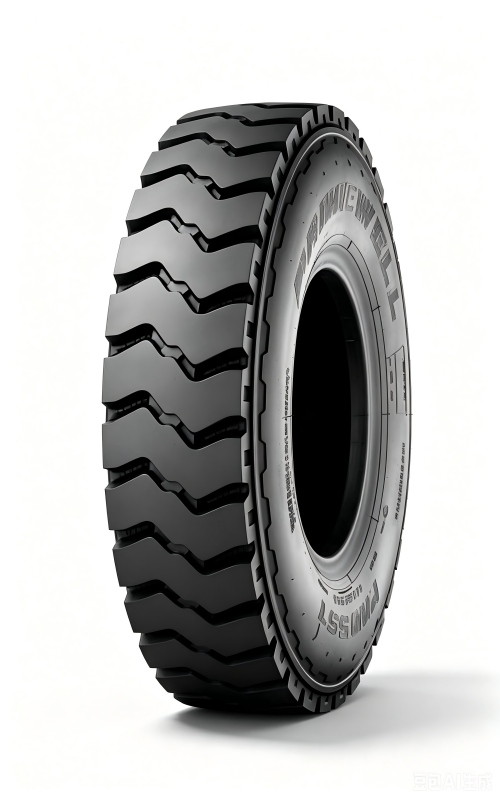

Picture:
Product Parameter
| Specification | Ply Rating | Load Index (Single/Dual) | Speed Symbol | Standard Rim | Rated Load (kg) Single/Dual | Rated Pressure (kPa) Single/Dual | Tread Depth (mm) | Outer Diameter (mm) | Section Width (mm) |
| 11.00R20 | 18PR | 152/149 | F | 8 | 3550/3250 | 930/930 | 24 | 1096 | 293 |
| 12.00R20 | 20PR | 156/153 | F | 8.5 | 4000/3650 | 900/900 | 24 | 1136 | 315 |
Product Feature And Application
Product Feature And Application
Product Features
PA0551 D1 heavy-duty all-position mine & mountain tire with deep transverse block tread, 24.0mm ultra-deep tread depth. The wide staggered block design delivers powerful off-road traction, outstanding cut, puncture and chunk-off resistance, with reinforced carcass structure for heavy-load capacity on harsh gravel, mine and mountain roads.
Application & Full Specifications
Compatible with steer, drive and trailer axles of mining and construction heavy trucks
Two available sizes:
11.00R20, 18PR, speed rating F, standard rim 8.0
Single load: 3550kg; Dual load: 3250kg, rated air pressure 930kPa
Tread depth 24.0mm, outer diameter 1096mm, section width 293mm
12.00R20, 20PR, speed rating F, standard rim 8.5
Single load: 4000kg; Dual load: 3650kg, rated air pressure 900kPa
Tread depth 24.0mm, outer diameter 1136mm, section width 315mm
Application scenario: D1 heavy-duty mine, construction and mountain rugged road freight transportation
Production Details
Core Advantages of Primewell PAO551 All position Tire
1.Versatile All-Position Performance
2.Long Tread Life
3.Excellent Wet Grip
4.Enhanced Durability
5.High Load Performance
6.Retreadable Casing
