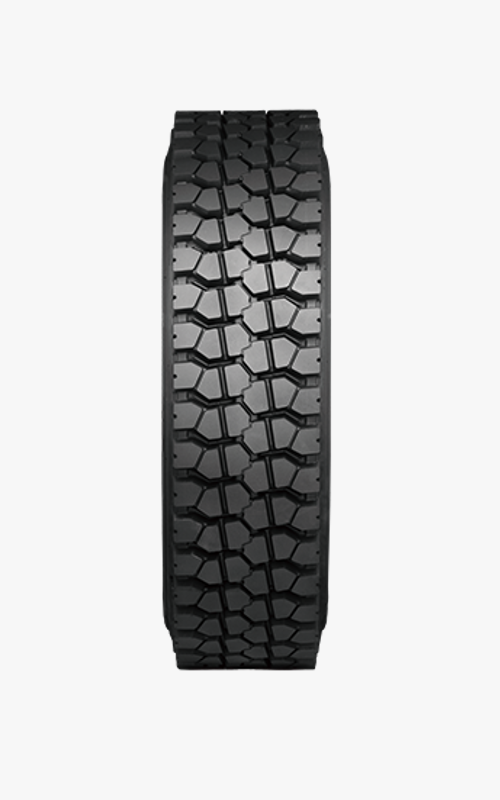

Primewell PDM606 is a drive axle heavy-duty truck tire built for various commercial trucks running on medium and short-distance mixed road conditions.
| Tire Size | Ply Rating | Load Index (Single/Dual) | Speed Rating | Standard Rim | Max Load (kg) Single/Dual | Max Pressure (kPa) Single/Dual | Tread Depth (mm) | Overall Diameter (mm) | Section Width (mm) |
| 8.25R20 | 16PR | 139/137 | K | 6.5 | 2430/2300 | 930/930 | 17 | 974 | 236 |
| 9.00R20 | 16PR | 144/142 | K | 7 | 2800/2650 | 900/900 | 18.5 | 1019 | 259 |
| 10.00R20 | 18PR | 149/146 | K | 7.5 | 3250/3000 | 930/930 | 19 | 1065 | 278 |
| 11.00R20 | 18PR | 152/149 | K | 8 | 3550/3250 | 930/930 | 20 | 1096 | 293 |
| 12.00R20 | 20PR | 156/153 | J | 8.5 | 4000/3650 | 900/900 | 20 | 1136 | 315 |
Product Features
PDM606 heavy-duty dedicated drive tire with robust block tread pattern, offered in 16PR, 18PR and 20PR load ratings with gradient tread depths. The large block design delivers powerful traction, excellent anti-slip, cut and puncture resistance, plus stable load-bearing capacity for rugged mixed road working conditions.
Primewell PDM606 Drive Axle Tire is exclusively matched for drive axles of medium & heavy trucks, delivering excellent off-road traction, high cut & chip resistance, enhanced stone ejection, long tread life, heavy-duty durability, retreadable casing.
Exclusively matched for drive axles of medium & heavy trucks
Core Advantages of Primewell PDM606 Drive position Tire
1.Excellent Off-Road Traction
2.High Cut & Chip Resistance
3.Enhanced Stone Ejection
4.Long Tread Life
5.Heavy-Duty Durability
6.Retreadable Casing
