Triangle Commercial Tire TR691-JS for Drive Position
Model:Triangle/TR691-JS
Triangle Commercial Tire TR691-JS for Drive Position — Built with a special tear-resistant tread compound, aggressive "~"-shaped deep block pattern, and open wide grooves with stone ejectors, this heavy-duty drive-position tire delivers excellent traction, superior cut/tear resistance, efficient heat dissipation, and long-lasting wear life to conquer harsh off-road and commercial conditions with confidence.
Triangle Commercial Tire TR691-JS for Drive Position is a drive-position commercial truck tire built for heavy-duty vehicles, delivering reliable performance on tough off-road and harsh work-site conditions.
Product Parameter
Size
LI/SS
PR
Rim size
Rim allowance
Inflated Section width (mm)
Overall diameter (mm)
Radius under load (mm)
Load capacity (kg/lbs) - Single
Load capacity (kg/lbs) - Dual
IP kpa
IP Psi
OTD mm
9.00R20
144/142F
16
7
7.00T,7.50
259
1030
471
2800/6175
2650/5840
900
130
23
10.00R20
149/146F
18
7.5
7.50V,8.00
278
1065
486
3250/7160
3000/6610
930
135
24.5
11.00R20
150/147F
16
8
8.50,8.00V
293
1096
499
3350/7390
3075/6780
830
120
25
11.00R20
152/149F
18
8
8.50,8.00V
293
1096
499
3550/7830
3250/7160
930
135
25
12.00R20
154/151F
18
8.5
8.50V,9.00
315
1136
516
3750/8270
3450/7610
830
120
25.5
12.00R20
156/153F
20
8.5
8.50V,9.00
315
1136
516
4000/8820
3650/8050
900
131
25.5
12.00R20
158/155F
22
8.5
8.50V,9.00
315
1136
516
4250/9370
3875/8540
970
141
25.5
11R22.5
144/142K
14
8.25
7.5
279
1065
491
2800/6175
2650/5840
720
105
24
11R22.5
146/143K
16
8.25
7.5
279
1065
491
3000/6610
2725/6005
830
120
24
11R24.5
146/143K
14
8.25
7.5
279
1116
516
3000/6610
2725/6005
720
105
24
11R24.5
149/146K
16
8.25
7.5
279
1116
516
3250/7160
3000/6610
830
120
24
315/80R22.5
157/154E
20
9
9.75
312
1082
500
4125/9090
3750/8270
900
130
26
315/80R22.5
167/164D
22
9
9.75
312
1082
500
5450/12000
5000/11000
950
138
26
275/70R22.5
148/145J
16
8.25
9
276
964
446
3150/6940
2900/6395
860
125
24.5
275/70R22.5
152/148J
18
8.25
9
276
964
446
3550/7830
3150/6940
930
135
24.5
Product Feature And Application
Feature:
Heavy Load Capacity: Load ratings up to 5450kg, with 14–22PR construction, built to handle the heaviest commercial truck applications.
Robust & Durable Tread: Special tear-resistant compound, paired with aggressive "~"-shaped deep block pattern, delivers excellent cut/tear resistance and long wear life.
Superior Traction & Control: Deep block tread creates strong biting edges, ensuring reliable grip and handling on rough, off-road surfaces.
Stone Ejection & Heat Dissipation: Open, wide grooves with stone ejectors prevent stone pinching, while also reducing heat accumulation for extended mileage.
Wide Size Range: Available in multiple sizes (9.00R20 to 315/80R22.5) to fit most heavy-duty drive-position applications.
Application:
Triangle Commercial Tire TR691-JS for Drive Position tires are ideal for dump trucks, mixer trucks, and heavy-duty commercial vehicles operating on mixed surfaces including urban roads, construction sites, and mining areas. Engineered specifically for drive axle positions, they perform reliably in rugged, high-abrasion environments, making them a trusted choice for construction, mining, and logistics fleets seeking durable, long-lasting tires.
Production Details

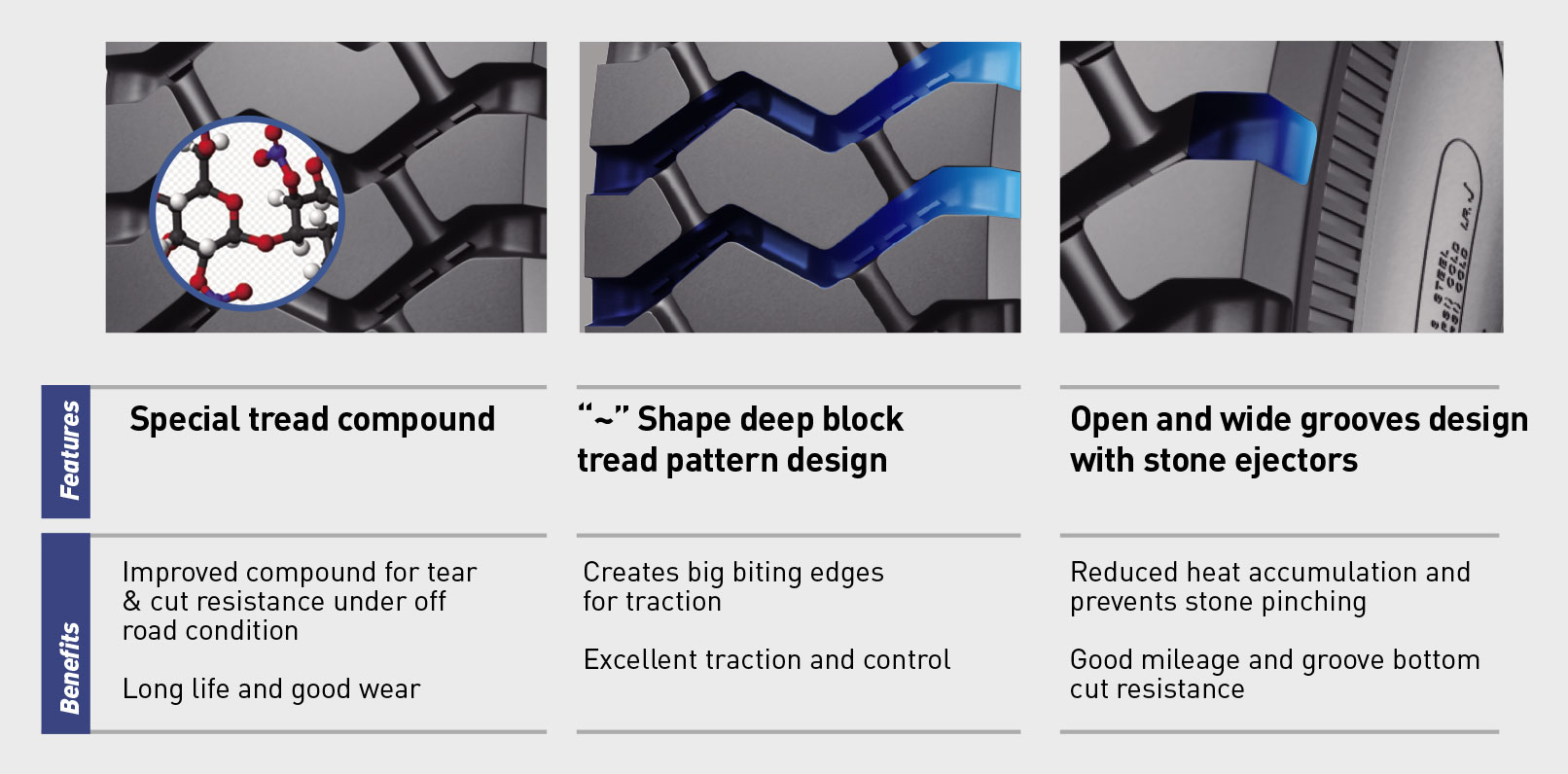

Core Advantages of Triangle Commercial Tire TR691-JS for Drive Position
Enhanced Traction: The "~"-shaped deep block pattern creates large biting edges for superior grip and control on rough/off-road surfaces.
Superior Durability: The special tear-resistant tread compound offers excellent cut and wear resistance, extending service life.
Self-Cleaning & Cooling: Open, wide grooves with stone ejectors prevent stone pinching and reduce heat buildup, improving mileage and reliability.
