Product Introduction
Triangle TH201 is run-flat passenger car tire with zero-pressure driving capability for daily paved roads.

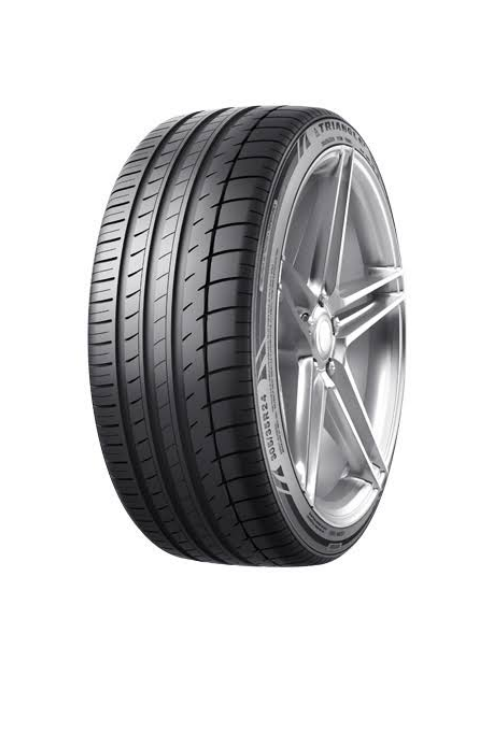

Picture:
Product Parameter
| Tire Size | Load Index | Speed Symbol | Tread Depth (mm) | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Load Capacity (kg) | Corresponding Pressure (kPa) |
| 205/55RF16 | 91 | V | 7.3 | 6½J | 214.00 | 632 | 615 | 350 |
| 205/55RF17 | 91 | V | 7.3 | 6½J | 214.00 | 658 | 615 | 350 |
| 225/40RF18 | 88 | W | 7.8 | 8J | 230.00 | 637 | 560 | 350 |
| 225/45RF17 | 91 | W | 7 | 7J | 225.00 | 634 | 615 | 350 |
| 225/45RF17 | 91 | W | 7.3 | 7½J | 225.00 | 659 | 615 | 350 |
| 225/45RF18 | 94 | V | 7 | 7J | 233.00 | 658 | 670 | 350 |
| 225/55RF17 | 97 | V | 7.8 | 7J | 233.00 | 680 | 730 | 350 |
| 235/45RF18 | 94 | W | 7 | 7½J | 236.00 | 669 | 670 | 350 |
| 235/45RF18 | 97 | W | 7.3 | 7½J | 245.00 | 693 | 730 | 350 |
| 235/55RF19 | 105 | W | 7.3 | 7½J | 245.00 | 741 | 925 | 350 |
| 245/40RF18 | 97 | Y | 7.3 | 8J | 248.00 | 653 | 730 | 350 |
| 245/45RF18 | 96 | W | 7 | 8J | 243.00 | 677 | 710 | 350 |
| 245/50RF18 | 100 | W | 7.3 | 7½J | 253.00 | 703 | 800 | 350 |
| 255/45RF18 | 106 | W | 7.3 | 8J | 265.00 | 713 | 900 | 300 |
| 255/50RF19 | 108 | W | 7.3 | 8J | 265.00 | 739 | 975 | 300 |
| 255/55RF18 | 105 | W | 7.3 | 8J | 265.00 | 737 | 925 | 300 |
| Tire Size | Load Index | Speed Symbol | Tread Depth (mm) | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Load Capacity (kg) | Corresponding Pressure (kPa) |
| 195/45R16 | 84 | W | 7.3 | 6½J | 195 | 582 | 500 | 340 |
| 205/40R16 | 83 | W | 7.3 | 7J | 212 | 570 | 487 | 340 |
| 205/40R17 | 84 | W | 7.3 | 7½J | 212 | 596 | 500 | 340 |
| 205/45R16 | 87 | W | 7.3 | 7J | 206 | 590 | 545 | 340 |
| 205/45R17 | 88 | Y | 7.3 | 7J | 206 | 616 | 560 | 340 |
| 205/50R16 | 91 | W | 7.3 | 6½J | 214 | 612 | 615 | 340 |
| 205/50R17 | 93 | W | 7.3 | 6½J | 214 | 638 | 650 | 340 |
| 205/50R17 | 93 | Y | 7.3 | 6½J | 214 | 638 | 650 | 340 |
| 205/55R16 | 91 | V | 7.3 | 6½J | 214 | 632 | 615 | 340 |
| 205/55R16 | 94 | W | 7.3 | 6½J | 214 | 632 | 670 | 340 |
| 215/35R18 | 84 | Y | 7.3 | 7½J | 218 | 607 | 500 | 340 |
| 215/35R19 | 85 | Y | 7.3 | 7½J | 218 | 633 | 515 | 340 |
| 215/40R17 | 87 | Y | 7.3 | 7½J | 218 | 629 | 545 | 340 |
| 215/45R16 | 89 | Y | 7 | 7J | 213 | 600 | 580 | 340 |
| 215/45R16 | 90 | Y | 7.3 | 7J | 213 | 600 | 600 | 340 |
| 215/45R17 | 91 | W | 7.3 | 7J | 213 | 626 | 615 | 340 |
| 215/45R17 | 91 | Y | 7.3 | 7J | 213 | 626 | 615 | 340 |
| 215/45R18 | 93 | Y | 7.3 | 7J | 213 | 651 | 650 | 340 |
| 215/50R17 | 95 | W | 7.3 | 7J | 226 | 648 | 690 | 340 |
| 215/50R17 | 95 | Y | 7.3 | 7J | 226 | 648 | 690 | 340 |
| 215/55R16 | 97 | W | 7.3 | 7J | 226 | 642 | 730 | 340 |
| 215/55R17 | 94 | V | 7.3 | 7J | 226 | 668 | 670 | 350 |
| 215/55R17 | 94 | W | 7.3 | 7J | 226 | 668 | 670 | 350 |
| 225/40R17 | 92 | Y | 7.3 | 7J | 225 | 608 | 630 | 340 |
| 225/45R17 | 99 | W | 7.3 | 7J | 225 | 693 | 775 | 350 |
| 225/30R20 | 85 | Y | 7 | 8J | 230 | 644 | 515 | 340 |
| 225/35R18 | 87 | Y | 7 | 8J | 230 | 615 | 545 | 340 |
| 225/35R19 | 88 | Y | 7 | 8J | 230 | 641 | 560 | 340 |
| 225/35R20 | 90 | Y | 7 | 8J | 230 | 666 | 600 | 340 |
| 225/40R18 | 92 | Y | 7.3 | 8J | 230 | 637 | 630 | 340 |
| 225/40R19 | 93 | Y | 7.3 | 8J | 230 | 663 | 650 | 340 |
| 225/45R17 | 94 | Y | 7 | 7½J | 225 | 634 | 670 | 340 |
| 225/45R18 | 95 | Y | 7 | 7½J | 225 | 659 | 690 | 340 |
| 225/45R19 | 96 | Y | 7.3 | 7½J | 225 | 685 | 710 | 340 |
| 225/50R16 | 96 | W | 7 | 7J | 233 | 632 | 710 | 340 |
| 225/50R17 | 94 | W | 7 | 7J | 233 | 658 | 670 | 350 |
| 225/50R17 | 98 | Y | 7 | 7J | 233 | 658 | 750 | 340 |
| 225/50R18 | 99 | W | 7 | 7J | 233 | 683 | 775 | 340 |
| 225/55R17 | 101 | V | 7 | 7J | 233 | 680 | 825 | 340 |
| 225/55R17 | 101 | Y | 7 | 7J | 233 | 680 | 825 | 340 |
| 225/55R18 | 98 | W | 7 | 7J | 233 | 705 | 750 | 350 |
| 235/35R19 | 91 | Y | 7 | 8½J | 241 | 647 | 615 | 340 |
| Tire Size | Load Index | Speed Symbol | Tread Depth (mm) | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Load Capacity (kg) | Corresponding Pressure (kPa) |
| 235/85R16 | 93 | Y | 7.3 | 6J | 241.00 | 672 | 690 | 340 |
| 235/85R16 | 96 | Y | 7 | 6J | 241.00 | 645 | 710 | 340 |
| 235/85R16 | 98 | Y | 7 | 6J | 241.00 | 671 | 775 | 340 |
| 235/85R16 | 99 | W | 7.3 | 8J | 236.00 | 669 | 775 | 340 |
| 235/65R17 | 108 | Y | 7.3 | 7J | 236.00 | 695 | 975 | 350 |
| 235/65R18 | 100 | Y | 7 | 7J | 245.00 | 668 | 825 | 340 |
| 235/65R18 | 103 | W | 7.3 | 7½J | 245.00 | 719 | 875 | 340 |
| 235/65R20 | 105 | Y | 7 | 7½J | 245.00 | 766 | 925 | 340 |
| 245/65R20 | 90 | Y | 7.3 | 7½J | 248.00 | 655 | 615 | 340 |
| 245/65R18 | 98 | Y | 7 | 7J | 248.00 | 695 | 730 | 340 |
| 245/65R17 | 107 | Y | 7.3 | 7½J | 248.00 | 628 | 975 | 340 |
| 245/65R17 | 91 | Y | 7.3 | 7½J | 248.00 | 638 | 615 | 340 |
| 245/65R17 | 97 | Y | 7 | 7J | 248.00 | 679 | 730 | 340 |
| 245/65R18 | 98 | Y | 7 | 7J | 248.00 | 695 | 750 | 340 |
| 245/65R20 | 100 | Y | 7 | 8J | 248.00 | 704 | 800 | 340 |
| 245/65R20 | 100 | Y | 7.3 | 8J | 243.00 | 727 | 800 | 340 |
| 245/65R18 | 102 | Y | 7 | 7J | 243.00 | 677 | 850 | 340 |
| 245/65R18 | 102 | Y | 7.3 | 8J | 243.00 | 703 | 850 | 340 |
| 245/65R18 | 104 | Y | 7 | 7½J | 253.00 | 703 | 900 | 340 |
| 245/65R18 | 105 | Y | 7.3 | 7½J | 253.00 | 728 | 925 | 340 |
| 245/65R19 | 108 | Y | 7.3 | 7½J | 255.00 | 754 | 975 | 340 |
| 255/60R18 | 92 | Y | 7.3 | 9J | 260.00 | 662 | 630 | 340 |
| 255/60R22 | 96 | Y | 7 | 9J | 260.00 | 713 | 690 | 340 |
| 255/65R17 | 96 | Y | 7 | 9J | 260.00 | 661 | 710 | 340 |
| 255/65R18 | 97 | Y | 7 | 9J | 260.00 | 686 | 730 | 340 |
| 255/65R18 | 109 | Y | 6.7 | 9J | 260.00 | 687 | 975 | 340 |
| 255/65R20 | 102 | Y | 7.3 | 9J | 260.00 | 733 | 850 | 340 |
| 255/65R21 | 100 | Y | 7 | 9J | 260.00 | 737 | 800 | 340 |
| 255/65R18 | 102 | Y | 6.7 | 7½J | 255.00 | 662 | 850 | 340 |
| 255/65R18 | 104 | Y | 7.3 | 7½J | 255.00 | 687 | 900 | 340 |
| 255/65R19 | 105 | Y | 6.5 | 7½J | 255.00 | 713 | 925 | 340 |
| 255/65R20 | 107 | Y | 7 | 8J | 265.00 | 739 | 975 | 340 |
| 255/65R20 | 109 | Y | 7.3 | 8J | 265.00 | 764 | 1030 | 340 |
| 265/60R18 | 93 | Y | 6.7 | 9J | 271.00 | 643 | 630 | 340 |
| 265/60R20 | 84 | Y | 7.3 | 9½J | 271.00 | 668 | 610 | 350 |
| 265/65R18 | 99 | Y | 7 | 9J | 271.00 | 699 | 775 | 350 |
| 265/65R20 | 98 | Y | 7.3 | 9J | 271.00 | 694 | 775 | 350 |
| 265/65R18 | 104 | W | 6.7 | 9J | 271.00 | 720 | 900 | 340 |
| 265/65R18 | 104 | Y | 6.7 | 9J | 271.00 | 720 | 900 | 340 |
| 265/65R18 | 110 | Y | 7.3 | 9J | 271.00 | 749 | 1060 | 340 |
| 265/65R18 | 110 | Y | 7.3 | 9J | 271.00 | 749 | 1060 | 340 |
| 275/65R18 | 96 | Y | 6.7 | 9J | 278.00 | 649 | 710 | 340 |
| 275/65R20 | 97 | Y | 6.7 | 9J | 278.00 | 674 | 730 | 340 |
| 275/65R18 | 100 | Y | 6.7 | 9J | 278.00 | 675 | 800 | 340 |
| 275/65R18 | 100 | Y | 6.7 | 9½J | 278.00 | 675 | 800 | 340 |
| 275/65R19 | 105 | Y | 6.7 | 9½J | 278.00 | 703 | 925 | 340 |
| 275/65R20 | 105 | Y | 6.7 | 9½J | 278.00 | 728 | 925 | 340 |
| 275/65R20 | 106 | Y | 6.7 | 9J | 278.00 | 701 | 950 | 340 |
| 275/65R20 | 107 | Y | 7.3 | 9J | 278.00 | 779 | 975 | 340 |
| 275/65R18 | 108 | Y | 7.3 | 9J | 273.00 | 731 | 1000 | 340 |
| 275/65R20 | 110 | Y | 7.3 | 9J | 273.00 | 781 | 1060 | 340 |
| 275/65R21 | 110 | Y | 7.3 | 9J | 273.00 | 781 | 1060 | 340 |
| 315/80R22.5 | 112 | Y | 7.3 | 10J/11J | 320.00 | 681 | 1860 | 350 |
| 315/80R22.5 | 110 | Y | 7.3 | 11J/11J | 320.00 | 728 | 1960 | 350 |
Triangle TH201 RF Tire
Product Features
Application
Run-flat passenger car tires. It maintains support between tire and rim after sudden puncture or air loss, securing vehicle safety.
Core Advantages of Triangle TH201 Passenger car tires
1.Asymmetric Tread Design Enhances handling stability and cornering performance.
2.Excellent Wet Grip Improves traction and braking on wet roads.
3.Low Road Noise Provides a quieter and more comfortable driving experience.
4.High-Speed Stability Ensures confident control at highway speeds.
5.Enhanced Wear Resistance Promotes even tread wear and longer service life.
6.Comfortable Ride Delivers smooth handling for everyday driving.
