Product Introduction
Wheel Tyres TRA01 Commercial Truck Tire is an all-position tire for commercial trucks and buses, designed primarily for long-haul and regional transportation on highways and paved roads. It is suitable for tractor trucks, cargo trucks, trailers, and passenger buses operating on well-maintained road networks.

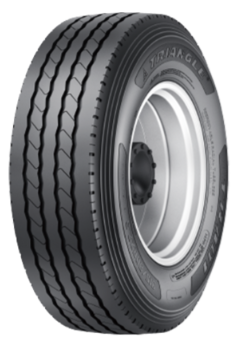

Picture:
Product Parameter (Specification)
| Size | LI/SS | PR | Rim size | Rim Alternative | Inflated Section width (mm) | Overall diameter (mm) | Radius under load (mm) | Single Load (kg) | Single Load (lbs) | Dual Load (kg) | Dual Load (lbs) | IP (kPa) | IP (psi) | OTD (mm) |
| 11R22.5 | 149/146L | 18 | 8.25 | 7.5 | 279 | 1054 | 491 | 3250 | 7160 | 3000 | 6610 | 930 | 135 | 13.5 |
| 12R22.5 | 143/141L | 12+ | 9 | 8.25 | 300 | 1085 | 504 | 2725 | 6005 | 2575 | 5675 | 620 | 90 | 14 |
| 12R22.5 | 152/149L | 18 | 9 | 8.25 | 300 | 1085 | 504 | 3550 | 7830 | 3250 | 7160 | 930 | 135 | 14 |
| 275/80R22.5 | 149/146M | 16 | 8.25 | 7.5 | 276 | 1012 | 473 | 3250 | 7160 | 3000 | 6610 | 850 | 125 | 14 |
| 275/80R22.5 | 149/146L | 18 | 8.25 | 7.5 | 276 | 1012 | 473 | 3250 | 7160 | 3000 | 6610 | 900 | 130 | 14 |
| 295/80R22.5 | 150/147L | 16 | 9 | 8.25 | 298 | 1044 | 487 | 3350 | 7390 | 3075 | 6780 | 830 | 120 | 14 |
| 295/80R22.5 | 152/148L | 16 | 9 | 8.25 | 298 | 1044 | 487 | 3550 | 7825 | 3150 | 6945 | 850 | 125 | 14 |
| 295/80R22.5 | 152/149L | 18 | 9 | 8.25 | 298 | 1044 | 487 | 3550 | 7825 | 3250 | 7160 | 900 | 130 | 14 |
| 315/80R22.5 | 151/148M | 16 | 9 | 9.75 | 312 | 1076 | 500 | 3450 | 7610 | 3150 | 6940 | 760 | 110 | 14 |
| 315/80R22.5 | 154/151M | 18 | 9 | 9.75 | 312 | 1076 | 500 | 3750 | 8270 | 3450 | 7610 | 830 | 120 | 14 |
| 315/80R22.5 | 157/154L | 20 | 9 | 9.75 | 312 | 1076 | 500 | 4125 | 9090 | 3750 | 8270 | 900 | 130 |
14 |
Feature:
All-Position Design
5 zig-zag rib pattern design with closed shoulder
Special pitch design
Advantage：
Balanced rolling resistance and handling
Reduced tire noise
Application：
Wheel Tyres TRA01 Commercial Truck Tires are designed primarily for long-haul and regional transportation on highways and paved roads. It is suitable for tractor trucks, cargo trucks, trailers, and passenger buses operating on well-maintained road networks.
Production Details
Core Advantages of Wheel Tyres TRA01 All Position Commercial Truck Tires
1. High Cost-Effectiveness
2. Better braking performance
3. Excellent grip
4. Strong traction on rough terrain
5. R&D and Certification Systems: Participates in Chinese tire standard development; holds international certifications (U.S. DOT, EU ECE, etc.).
6. Adaptability to well-maintained road Conditions
