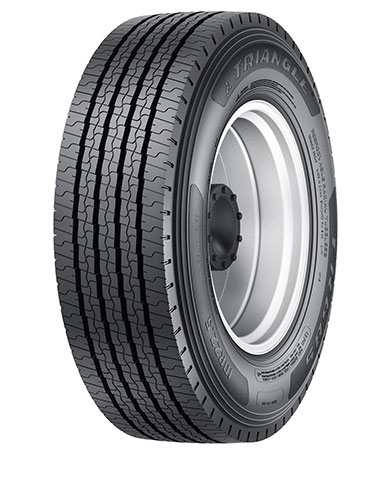

Triangle Tyres Radial Tire TR685

Model:Triangle/TR685

Triangle Tyres Radial Tire TR685 is designed for all-position bus applications, the TR685 delivers exceptional handling and long mileage. Its sturdy casing enhances toughness and retreadability, ensuring reliable safety and outstanding economy for your fleet.

Send Inquiry

Product Description

Product Introduction

Triangle Tire-TR685

Triangle Tyres Radial Tire TR685 is designed for city/highway buses, delivering excellent handling, safety, and durability for long-lasting, cost-effective performance on both urban and road surfaces.

Product Parameter (Specification)

Size	LI/SS	PR	Rim size	Rim allowance	Inflated Section width (mm)	Overall diameter (mm)	Radius under load (mm)	Load capacity kg/lbs (Single)	Load capacity kg/lbs (Dual)	IP kpa	IP Psi	OTD mm
8.25R16LT	126/122M	14	6.50H	6.00G,6.50	235	865	397	1700/3750	1500/3305	670	97	13
8.25R16LT	128/124M	16	6.50H	6.00G,6.50	235	865	397	1800/3970	1600/3525	770	112	13
9.5R17.5	129/127L	14	6.75	6	240	850	391	1850/4080	1750/3860	750	109	15
9.5R17.5	143/141I	18	6.75	6	240	850	391	2725/6005	2575/5675	875	127	15
8R19.5	124/122K	12	6	5.25,6.75	203	871	402	1600/3525	1500/3305	760	110	13
8R19.5	127/125L	14	6	5.25,6.75	203	871	402	1750/3860	1650/3840	850	125	13
8R22.5	130/128M	14	6	5.25,6.75	203	947	440	1900/4190	1800/3970	830	120	13
9R22.5	136/134L	14	6.75	6.00,7.50	229	986	457	2240/4940	2120/4675	830	120	14
9R22.5	136/134M	14	6.75	6.00,7.50	229	986	457	2240/4940	2120/4675	830	120	14
10R22.5	141/139M	14	7.5	6.75	254	1030	476	2575/5675	2430/5355	790	115	15
10R22.5	144/142L	16	7.5	6.75	254	1030	476	2800/6175	2650/5840	900	130	15
10R22.5	144/142M	16	7.5	6.75	254	1030	476	2800/6175	2650/5840	900	130	15
11R22.5	144/142M	14	8.25	7.5	279	1065	491	2800/6175	2650/5840	720	105	15
11R22.5	146/143M	16	8.25	7.5	279	1065	491	3000/6610	2725/6005	830	120	15
11R22.5	148/145M	16+	8.25	7.5	279	1065	491	3150/6940	2900/6395	850	125	15
11R22.5	149/146M	18	8.25	7.5	279	1065	491	3250/7160	3000/6610	930	135	15
205/75R17.5	122/120M	12	6	5.25	205	753	353	1500/3305	1400/3085	675	98	12
205/75R17.5	124/122M	14	6	5.25	205	753	353	1600/3525	1500/3305	750	109	12
205/75R17.5	126/124M	16	6	5.25	205	753	353	1700/3750	1600/3525	810	117	12
215/75R17.5	126/124M	14	6	6.75	211	773	359	1700/3750	1600/3530	700	100	14
215/75R17.5	127/124M	16	6	6.75	211	773	359	1750/3860	1600/3530	830	120	14
215/75R17.5	135/133L	16	6	6.75	211	773	359	2180/4805	2060/4540	860	125	14
215/75R17.5	136/134J	18	6	6.75	211	773	359	2240/4940	2120/4675	890	130	14
225/75R17.5	127/125M	14	6.75	6	226	789	366	1750/3860	1650/3640	760	110	14.5
225/75R17.5	129/127M	16	6.75	6	226	789	366	1850/4080	1750/3860	830	120	14.5
225/75R17.5	131/129L	18	6.75	6	226	789	366	1950/4300	1850/4080	790	115	14.5
235/75R17.5	132/129M	16	6.75	7.5	233	803	372	2000/4410	1850/4080	830	120	14
235/75R17.5	141/140J	16	6.75	7.5	233	803	372	2575/5675	2500/5510	850	123	14
235/75R17.5	143/141I	18	6.75	7.5	233	803	372	2725/6005	2575/5675	860	125	14
225/70R19.5	125/123M	12	6.75	6	226	817	382	1650/3640	1550/3415	660	95	14.5
225/70R19.5	128/126L	14	6.75	6	226	817	382	1800/3970	1700/3750	760	110	14.5
225/70R19.5	143/141I	18	6.75	6	226	817	382	2725/6005	2575/5675	860	125	14.5
245/70R17.5	136/134M	16	7.5	6.75	248	795	364	2240/4940	2120/4675	850	123	13.5
245/70R17.5	143/141I	18	7.5	6.75	248	795	364	2725/6005	2575/5675	875	127	13.5
245/70R19.5	133/131L	14	7.5	6.75	248	845	391	2060/4540	1950/4300	760	110	14.5
245/70R19.5	135/133L	16	7.5	6.75	248	845	391	2180/4805	2060/4540	830	120	14.5
245/70R19.5	136/134M	16	7.5	6.75	248	845	391	2240/4940	2120/4675	830	120	14.5
245/70R19.5	141/140J	18	7.5	6.75	248	845	391	2575/5675	2500/5510	850	125	14.5
285/70R19.5	146/144L	18	8.25	9	283	901	413	3000/6610	2800/6175	850	123	13.5
285/70R19.5	150/148J	18	8.25	9	283	901	413	3350/7390	3150/6940	900	130	13.5
305/70R19.5	144/141M	16	9	8.25	305	929	425	2800/6175	2575/5675	760	110	15
305/70R19.5	146/143M	18	9	8.25	305	929	425	3000/6610	2725/6005	830	120	15
305/70R19.5	148/145L	20	9	8.25	305	929	425	3150/6940	2900/6395	900	130	15
255/70R22.5	140/137M	16	7.5	8.25	255	936	435	2500/5510	2300/5070	830	120	14.5
315/70R22.5	149/146M	16	9	9.75	312	1020	469	3250/7160	3000/6610	760	110	16
315/70R22.5	151/148M	18	9	9.75	312	1020	469	3450/7610	3150/6940	830	120	16
315/70R22.5	152/148M	16	9	9.75	312	1020	469	3550/7830	3150/6940	830	120	16
315/70R22.5	(154/150L)	16	9	9.75	312	1020	469	3550/7830	3150/6940	830	120	16

Product Feature And Application

Feature:

1. Excellent handling and good mileage performance

2. Sturdy casing for enhanced toughness

3. High retreadability for improved cost efficiency

Application：Triangle Tyres Radial Tire TR685 is an all-position tire designed for buses, delivering reliable performance across various road conditions.

Production Details

Core Advantages of Triangle Tyres Radial Tire TR685

· Superior Handling & Stability：Offers excellent handling performance for safe and controlled driving.

· Long-lasting Mileage：Delivers outstanding wear resistance to ensure long service life and cost-effectiveness.

· Durable Casing & Retreadability：Features a sturdy casing that enhances toughness and enables easy retreading for secondary use.
