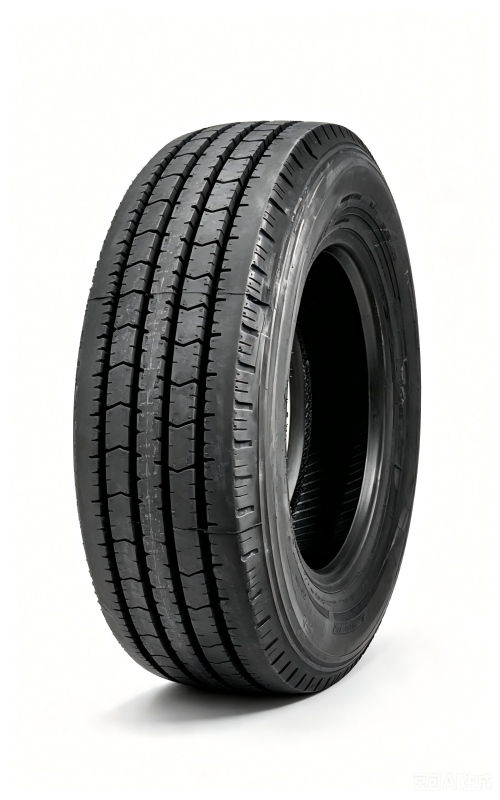

Chaoyang CR960A Steer Position

Model:Chaoyang/CR960A

Chaoyang CR960A Steer tire adopts a simple straight rib tread. The upgraded closed shoulder promotes even wear to extend tread life. Cross-rib sipes quickly drain water, delivering reliable wet-road grip. It ensures steady handling for long-haul highway transportation.

Send Inquiry

Product Description

Chaoyang CR960A

CR960A is a highway tire designed for heavy-duty trucks and trailers operating on paved dry and wet road surfaces.


Product Parameter (Specification)

Tire Size	LR/PR	Service Index	Tread Depth (mm)	Standard Rim	Overall Diameter (mm)	Section Width (mm)	Single Load (kg)	Single Load (lbs)	Single Inflation Pressure (kPa)	Single Inflation Pressure (psi)	Dual Load (kg)	Dual Load (lbs)	Dual Inflation Pressure (kPa)	Dual Inflation Pressure (psi)
7.50R16	G/14	122/118L	12	6.00G	805	215	1500	3305	770	112	1320	2910	770	112
8.25R16	G/14	128/126L	13	6.50H	855	235	1800	3970	670	97	1700	3750	670	97
8.25R16	H/16	128/124L	13	6.50H	855	235	1800	3970	670	97	1700	3750	670	97
245/70R17.5	G/14	136/134M	13	7.5	789	248	2240	4940	850	123	2120	4675	850	123
245/70R17.5	J/18	143/141J	13	7.5	789	248	2725	6005	875	128	2575	5675	875	128
205/75R17.5	G/14	124/122M	12	6	753	205	1600	3525	750	109	1500	3305	750	109
215/75R17.5	H/16	135/133J	12.5	6	767	211	2180	4805	850	123	2060	4540	850	123
225/75R17.5	G/14	129/127M	12.5	6.75	783	226	1850	4080	725	105	1750	3860	725	105
235/75R17.5	G/14	132/130M	13.3	6.75	797	233	2000	4410	775	112	1900	4190	775	112
235/75R17.5	H/16	143/141J	13.3	6.75	797	233	2725	6005	875	128	2575	5675	875	128
8R19.5	F/12	124/122L	13	6	859	203	1600	3525	760	110	1500	3305	760	110
225/70R19.5	F/12	125/123M	13	6.75	811	226	1650	3640	660	95	1550	3415	660	95
245/70R19.5	G/14	133/131M	13	7.5	839	248	2060	4540	770	110	1950	4300	770	110
245/70R19.5	H/16	136/134M	13	7.5	839	248	2240	4940	830	120	2120	4675	830	120
265/70R19.5	H/16	140/138M	14	7.5	867	262	2500	5510	775	112	2360	5200	775	112
265/70R19.5	J/18	143/141J	14	7.5	867	262	2725	6005	850	123	2575	5675	850	123
285/70R19.5	H/16	146/144K	14.5	8.25	895	283	3000	6610	850	123	2800	6175	850	123
11R22.5	G/14	144/142L	14.2	8.25	1054	279	2800	6175	720	105	2650	5840	720	105
11R22.5	H/16	148/145M	14.2	8.25	1054	279	3150	6940	850	123	2900	6390	850	123
315/70R22.5	L/20	156/150L	15	9	1014	312	4000	8820	900	130	3350	7390	900	130
295/75R22.5	G/14	144/141L	14.2	9	1014	312	2800	6175	760	110	2575	5675	760	110
315/80R22.5	J/18	154/151M(156/150L)	15	9	1076	312	3750	8270	830	120	3450	7610	830	120
315/80R22.5	L/20	157/154K	15	9	1076	312	4125	9090	900	130	3750	8270	900	130
11R24.5	G/14	146/143L	14.2	8.25	1104	279	3000	6610	720	105	2725	6005	720	105
11R24.5	H/16	149/146L	14.2	8.25	1104	279	3250	7160	830	120	3000	6610	830	120
285/75R24.5	G/14	144/141L	14.2	8.25	1050	283	2800	6175	760	110	2575	5675	760	110

Features of Chaoyang CR960A

Product Features

Optimized closed shoulder design delivers uniform wear and extended tread service life
Simple straight rib pattern accelerates water drainage, balancing even wear and stable wet performance
Cross rib sipes cut through water layer for reliable control on rainy highways

Advantage

Chaoyang CR960A Highway Tire is recommended axles: Steer & trailer axles, available axle: Drive axle, fits dry van trucks, tankers and flatbed transport vehicles, designed for long-distance full-paved highway freight transport, delivering improved close shoulder helps to improve even wear resulting in long tread life, cross rib sipes slice through water for solid control on wet roads, straight simple rib pattern improves even wearing and efficient water evacuation for excellent wet traction and handing.

Application：

Recommended axles: Steer & trailer axles
Available axle: Drive axle
Fits dry van trucks, tankers and flatbed transport vehicles
Designed for long-distance full-paved highway freight transport

Production Details

Core Advantages of Chaoyang CR960A Steer Position

1.Improved close shoulder helps to improve even wear resulting in long tread life
2.Cross rib sipes slice through water for solid control on wet roads
3.Straight simple rib pattern improves even wearing and efficient water evacuation for excellent wet traction and handing

Hot Tags: Chaoyang CR960A Steer Position, China, Manufacturer, Supplier, Factory
