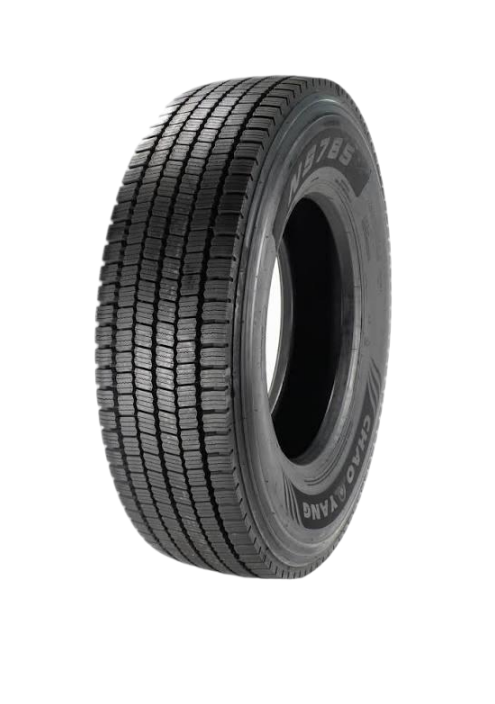

Chaoyang Winter tire NS785 Steer Position

Model:Chaoyang/Winter tire NS785

Chaoyang Winter tire NS785 Steer Position features wide deep circumferential grooves for efficient snow‑ice evacuation. Special compound keeps rubber flexible under low temperatures. Advanced block‑and‑siping tread delivers reliable extra traction on icy and snowy road surfaces.

Send Inquiry

Product Description

Chaoyang NS785

NS785 is a winter truck tire with a specialized tread compound and strong biting edges, engineered for superior traction and safety on icy and snowy roads.


Product Parameter (Specification)

Size	LR / PR	Service Index	Tread Depth (mm)	Overall Diameter (mm)	Section Width (mm)	Max. Load Capacity at Cold Inflation Pressure - Single (kg)	Max. Load Capacity at Cold Inflation Pressure - Single (lbs)	Max. Load Capacity at Cold Inflation Pressure - Single (kPa)	Max. Load Capacity at Cold Inflation Pressure - Single (psi)	Max. Load Capacity at Cold Inflation Pressure - Dual (kg)	Max. Load Capacity at Cold Inflation Pressure - Dual (lbs)	Max. Load Capacity at Cold Inflation Pressure - Dual (kPa)	Max. Load Capacity at Cold Inflation Pressure - Dual (psi)
225/80R17.5	H/16	123/122L	15	811	226	1550	3415	700	102	1500	3305	700	102
245/70R19.5	H/16	136/134J	18.5	845	248	2240	4940	830	120	2120	4675	830	120
265/70R19.5	H/16	140/138J	19.5	867	262	2500	5510	775	112	2360	5200	775	112
385/65R22.5	L/20	160K (158L)	15	996	386	4500	9920	900	130	-	-	-	-
385/65R22.5	L/20	160K	15	1070	394	4500	9920	900	130	-	-	-	-
295/80R22.5	J/18	154/149L	18	1050	298	3750	8270	900	131	3250	7160	900	131
315/80R22.5	J/18	156/150K (152/148L)	17	1050	312	4000	8820	900	130	3350	7390	900	130
315/80R22.5	J/18	154/151M (156/153L)	18	1076	312	3750	8270	830	120	3450	7610	830	120
315/80R22.5	L/20	157/154L	18	1076	312	4125	9090	900	130	3750	8270	900	130

Features of Chaoyang NS785

Wide & deep circumferential grooves, improves snow and ice evacuation
Special tread compound keeps rubber flexible under low‑temperature conditions
Wide tread with advanced block‑and‑sipe design, delivers strong traction on snowy & icy roads

Application

Winter‑spec commercial tire for trucks & trailers, suited for cold‑region snow‑ice road transport
Multiple sizes available; Made in China & Thailand

Production Details

Core Advantages of Chaoyang Winter tire NS785 Steer Position

1.Excellent grip on snow, ice, and cold roads
2.Strong snow traction with advanced siping design
3.Efficient water and slush evacuation
4.Stable steering and driving control
5.Durable performance in winter conditions
